ZFIN Image: Fujii et al., 2016, Fig. 5


Figure Caption

Fig. 5

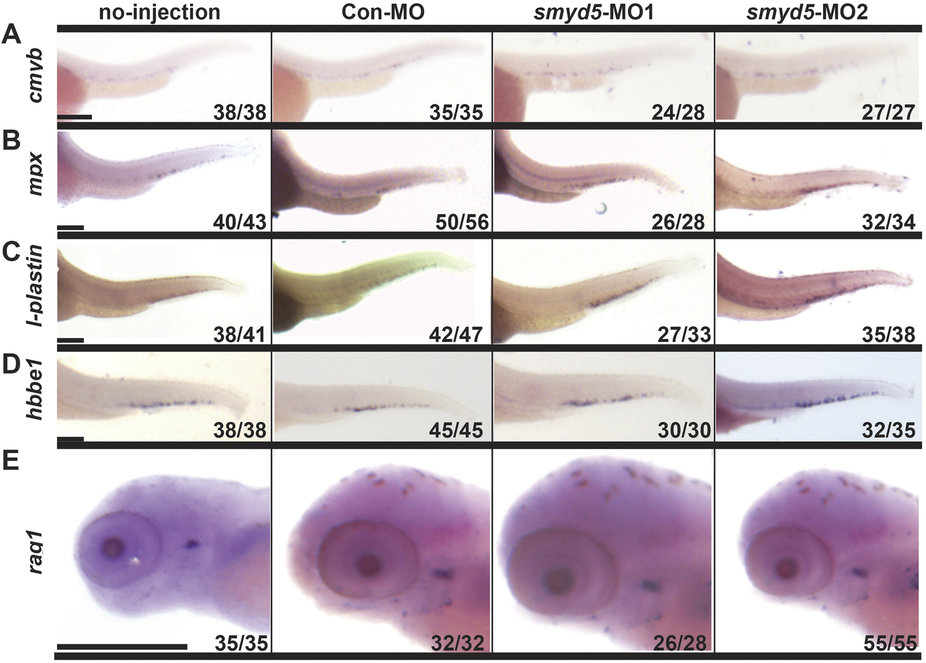

Expression of markers for definitive hematopoietic lineages in smyd5 morphants by WISH.

(A) Expression of cmyb in embryos injected with smyd5-MO1, smyd5-MO2, control embryos injected with Con-MO, and those no-injection at 30 hpf. Expression of mpx (B) and l-plastin (C) in embryos injected with smyd5-MO1, smyd5-MO2, control embryos injected with Con MO, and those no-injection at 72 hpf. Expression of hbbe1 (D) and rag1 (E) in embryos injected with smyd5-MO1, smyd5-MO2, control embryos injected with Con-MO, and those no-injection at 96 hpf. The number of embryos with the representative phenotype per the total number of embryos is indicated in each panel. Embryos are depicted in the lateral view. Scale bar, 200 µm.
