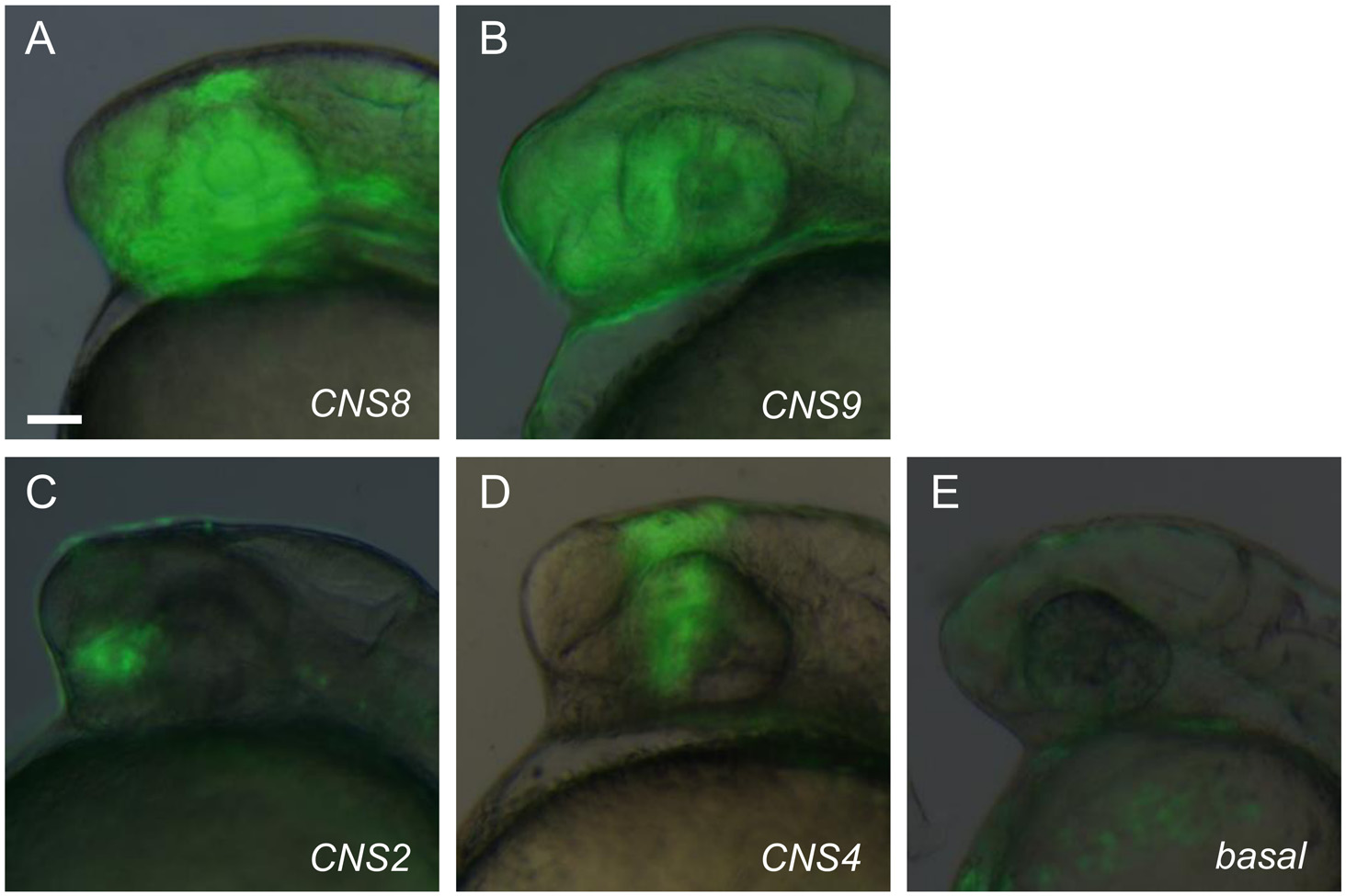

Fig. 2 Region specific enhanver activity of the identified CNSs.

(A-B) CNS8 and CNS9, located in the vicinity of the lhx5 promoter region give rise to broad reporter EGFP expression in the forebrain regions. (C) CNS2 located approximately 50 kb upstream of the lhx5 coding region gives rise to restricted EGFP signal in the anterior ventral forebrain. (D) CNS4 located 40 kb upstream of the lhx5 coding region, gives rise to restricted EGFP expression in the diencephalic region. (E) Vector construct gives rise to basal non-tissue specific EGFP expression in transient expression assay. Lateral view of the forebrain regions of embryos at 24 hpf, anterior to the left. Scale bar: 50µm.
