Fig. 3

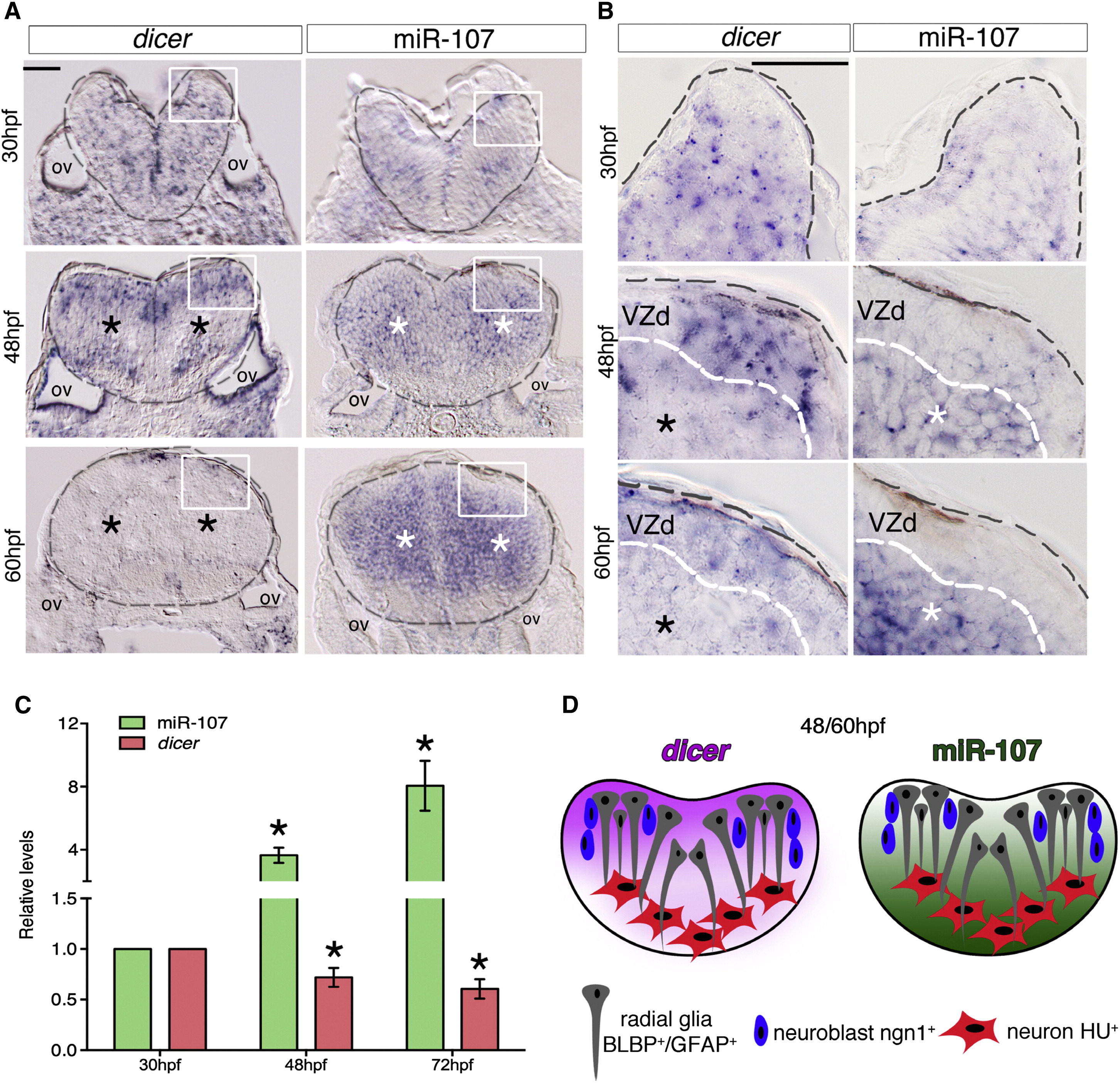

miR-107 and Dicer Show an Opposite Expression Pattern along the Hindbrain Ventricular Zone

(A and B) Expression of dicer and miR-107 in 15 µm hindbrain cross-sections at 30, 48, and 60 hpf. Gray dashed line indicates the hindbrain area; black stars indicate the area with low dicer expression, while white stars show the region of high miR-107 expression.

(B) High-magnification pictures (60×) of the region boxed in (A).

(C) qRT-PCR of dicer and miR-107 levels at 30, 48, and 72 hpf and relative to the expression levels at 30 hpf. Data are presented as mean ± SEM of three independent experiments (n <20 embryos each). p < 0.05.

(D) Graphic representation of the opposite spatial expression of dicer (purple) and miR-107 (green) in the hindbrain from 48 to 60 hpf. Scale bars represent 50 µm.
