Figure Caption

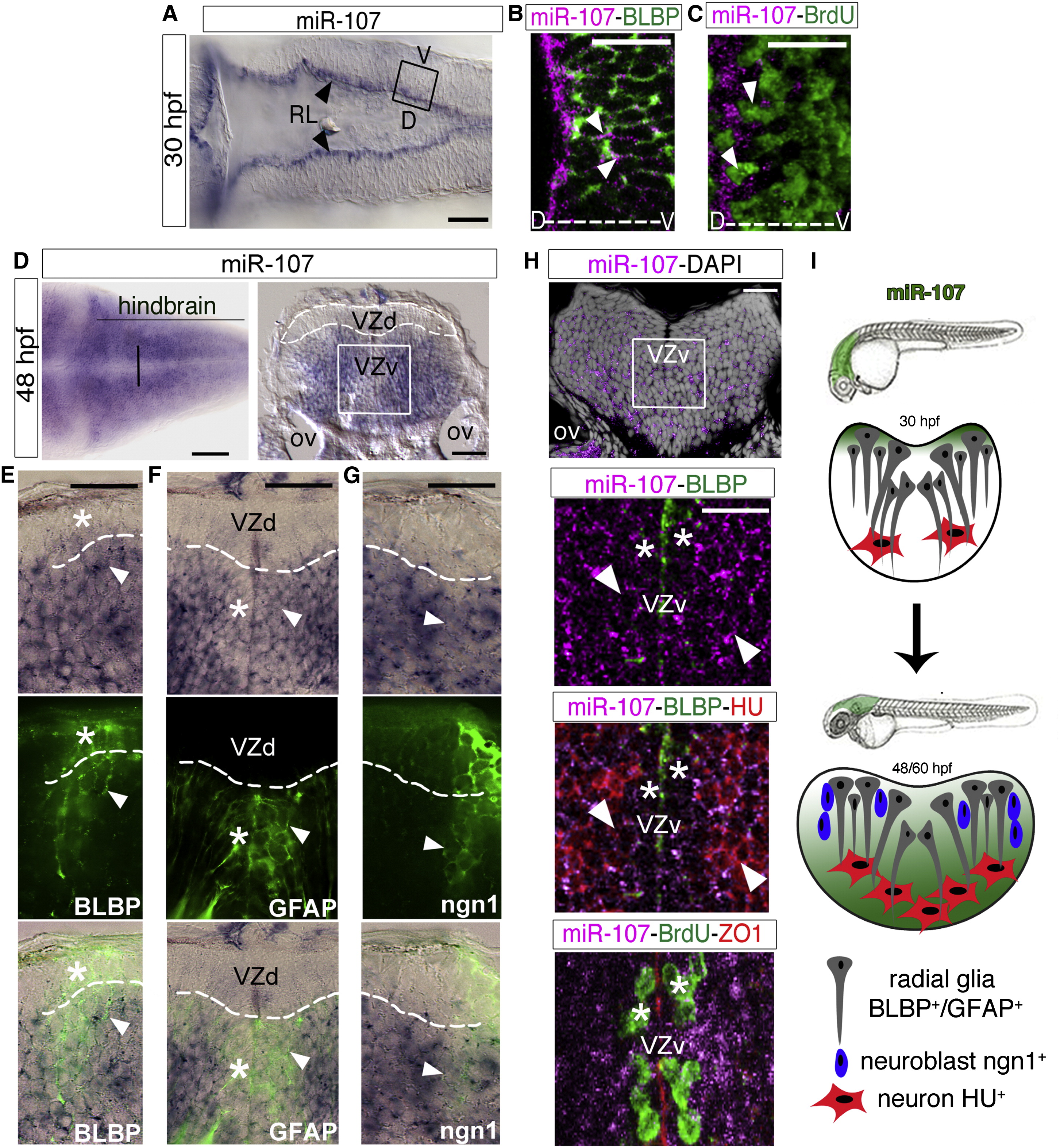

Fig. 1

miR-107 Is Expressed in Newborn Neurons and Neural/Neuronal Progenitors across the Hindbrain Periventricular Zone

(A) Expression of miR-107 at 30hpf is restricted to the RL (arrowheads). Dorsal is up and anterior to the left

(B and C) Whole-mount confocal images of the boxed area in (A), stained with miR-107 LNA probe and anti-BLBP antibody in (B) or anti-BrdU antibody in (C). Brain orientation is indicated as D (dorsal) and V (ventral). Arrowheads indicate miR-107 expression.

(D–H) Expression of miR-107 across the hindbrain of 48 hpf embryos. (D) Bright-field images of whole-mount embryos (left) and hindbrain transverse section (right). VZd indicates the dorsal ventricular hindbrain zone (white dotted line). VZv indicates ventral ventricular hindbrain zone (white solid square).

(E–G) High-magnification images (60×) of the VZd zone representative of the region highlighted in (D) (left). miR-107 and protein colocalization is indicated with arrowheads, while miR-107 negative or low expressing cells are indicated with stars.

(H) (Top) A confocal image of a transverse hindbrain section at the level of the otic vesicle (OV). miR-107 is shown in purple, and DAPI nuclei are in white. Stars indicate miR-107 expression in the ventral ventricular zone (VZv). (Bottom) coronal confocal sections at the VZv level highlighted by the white box in the top and stained for the indicated proteins. ZO1 staining indicates the apical region of the VZv where BrdU-positive cells are nested (white stars).

(I) Schematic representation of the dynamic expression of miR-107 (green) in the developing hindbrain from 30 to 48/60 hpf. Scale bars represent 50 µm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32(5), Ristori, E., Lopez-Ramirez, M.A., Narayanan, A., Hill-Teran, G., Moro, A., Calvo, C.F., Thomas, J.L., Nicoli, S., A Dicer-miR-107 Interaction Regulates Biogenesis of Specific miRNAs Crucial for Neurogenesis, 546-60, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
