ZFIN Image: Olena et al., 2015, Fig. S6


Figure Caption

Fig. S6

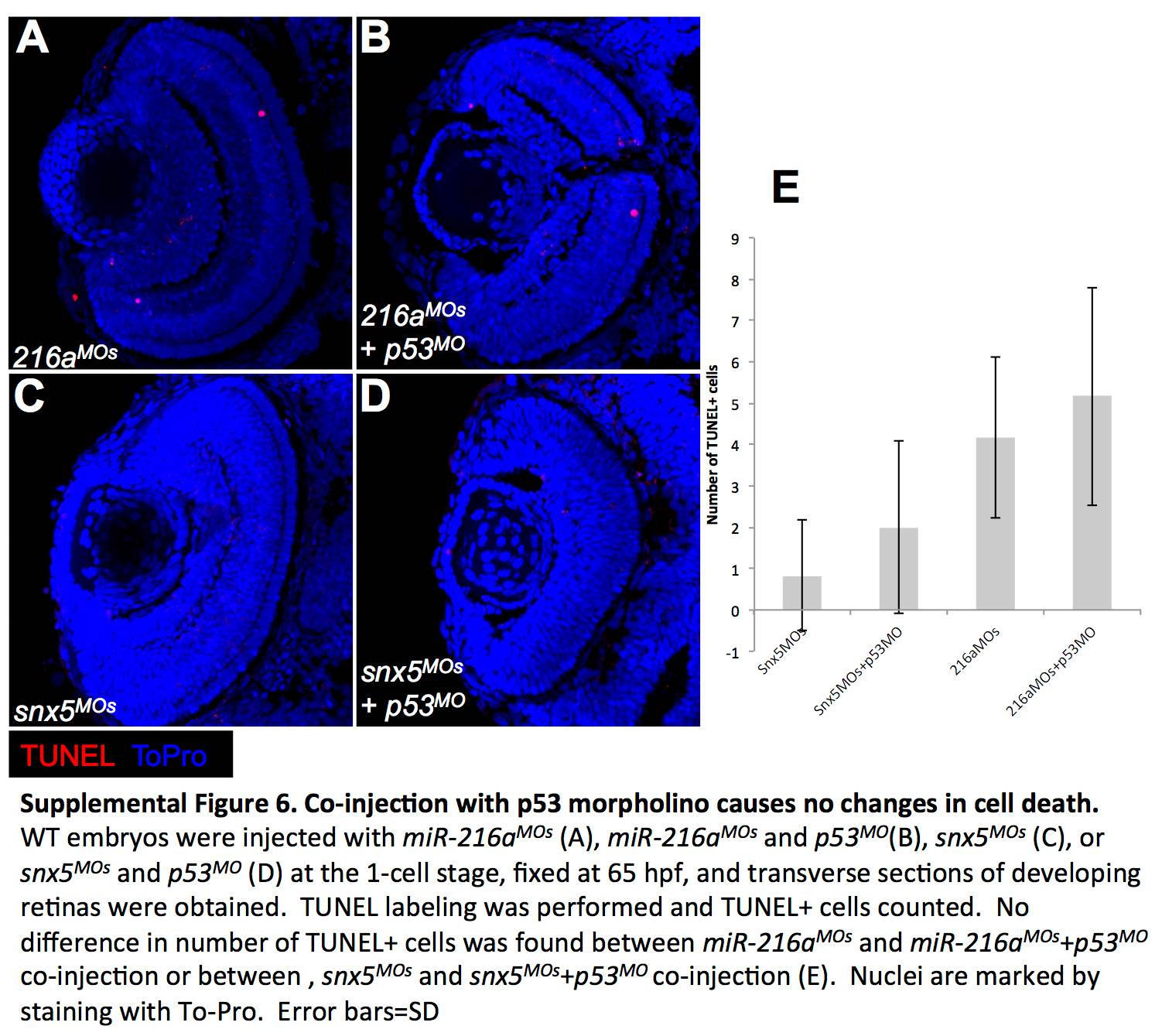

Co-injection with p53 morpholino causes no changes in cell death. WT embryos were injected with miR-216a^MOs (A), miR-216a^MOs and p53^MO (B), snx5^MOs (C), or snx5^MOs and p53^MO (D) at the 1-cell stage, fixed at 65 hpf, and transverse sections of developing retinas were obtained. TUNEL labeling was performed and TUNEL+ cells counted. No difference in number of TUNEL+ cells was found between miR-216a^MOs and miR-216a^MOs+p53^MO co-injection or between, snx5^MOs and snx5^MOs+p53^MO co-injection (E). Nuclei are marked by staining with To-Pro. Error bars = SD.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 400(1), Olena, A.F., Rao, M.B., Thatcher, E.J., Wu, S.Y., Patton, J.G., miR-216a regulates snx5, a novel notch signaling pathway component, during zebrafish retinal development, 72-81, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
