Fig. S3

ID
ZDB-IMAGE-150422-55
Genes
Source
Figures for Olena et al., 2015
Figure Caption

Fig. S3

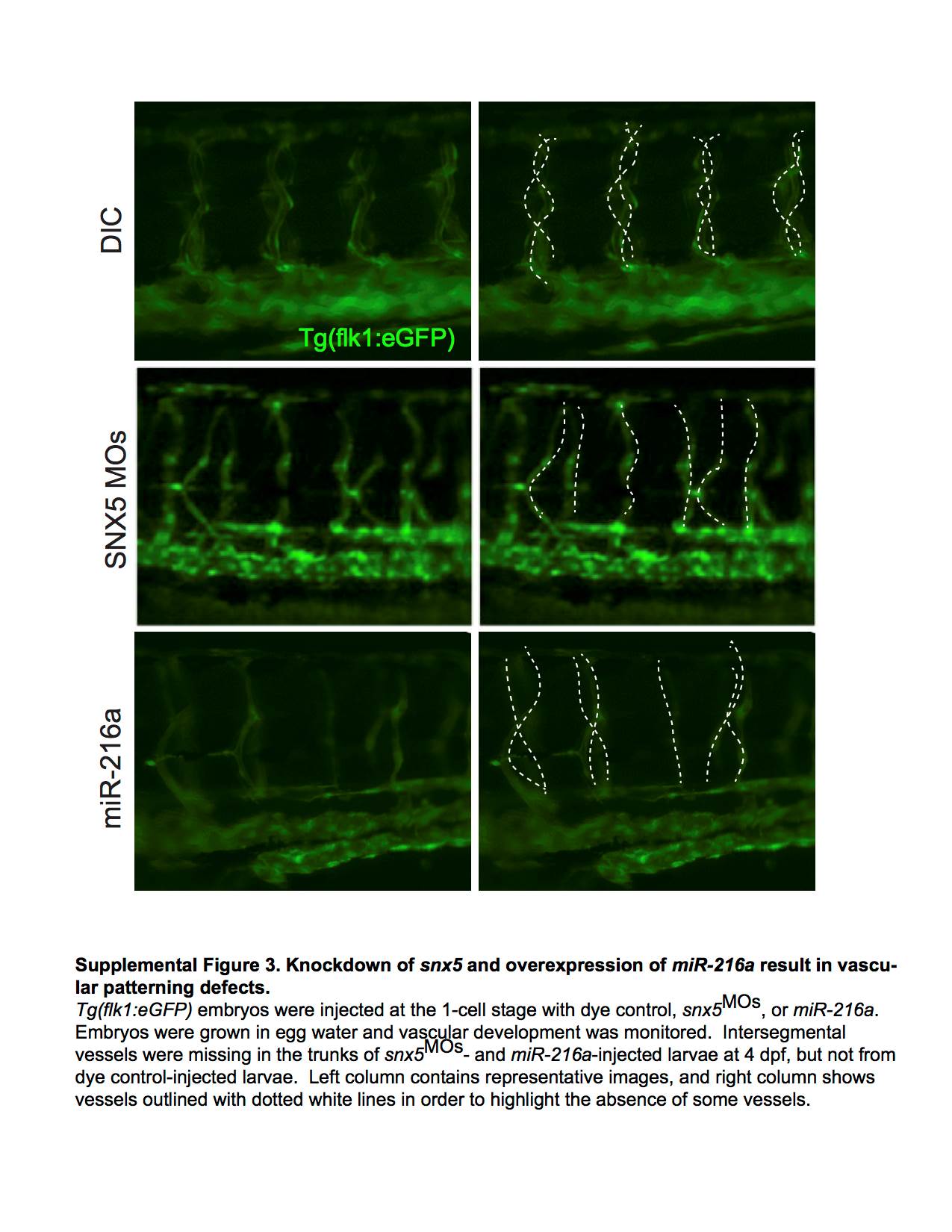

Knockdown of snx5 and overexpression of miR-216a result in vascular patterning defects. Tg(flk1:eGFP) embryos were injected at the 1-cell stage with dye control, snx5MOs, or miR-216a. Embryos were grown in egg water and vascular development was monitored. Intersegmental vessels were missing in the trunks of snx5MOs - and miR-216a-injected larvae at 4dpf, but not from dye control-injected larvae. Left column contains representative images, and right column shows vessels outlined with dotted white lines in order to highlight the absence of some vessels.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 400(1), Olena, A.F., Rao, M.B., Thatcher, E.J., Wu, S.Y., Patton, J.G., miR-216a regulates snx5, a novel notch signaling pathway component, during zebrafish retinal development, 72-81, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
