Figure Caption

Fig. 8

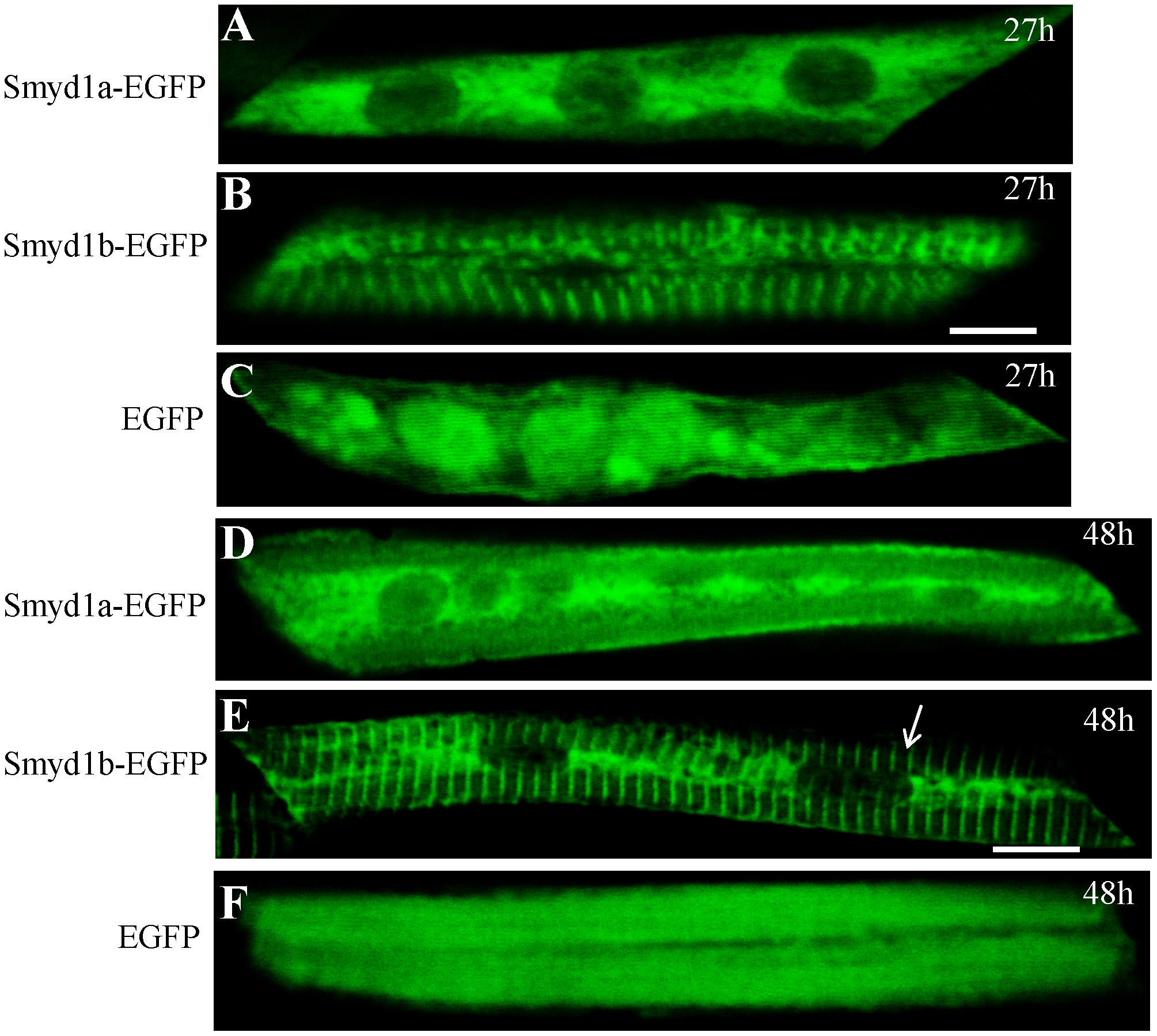

Characterization of the Smyd1a subcellular localization using the Smyd1a-EGFP fusion protein.

DNA constructs expressing the zebrafish Smyd1a-EGFP or Smyd1b-EGFP fusion proteins or EGFP control were injected into zebrafish embryos. Their expression and localization were determined in myofibers of the injected zebrafish embryos at 27 (A, B, C) and 48 (D, E, F) hpf. A and D represent Smyd1b-EGFP; B and E represent Smyd1a-EGFP; C and F represent EGFP control. Scale bars: 6 μm in B; 10 μm in E.
