Fig. S6

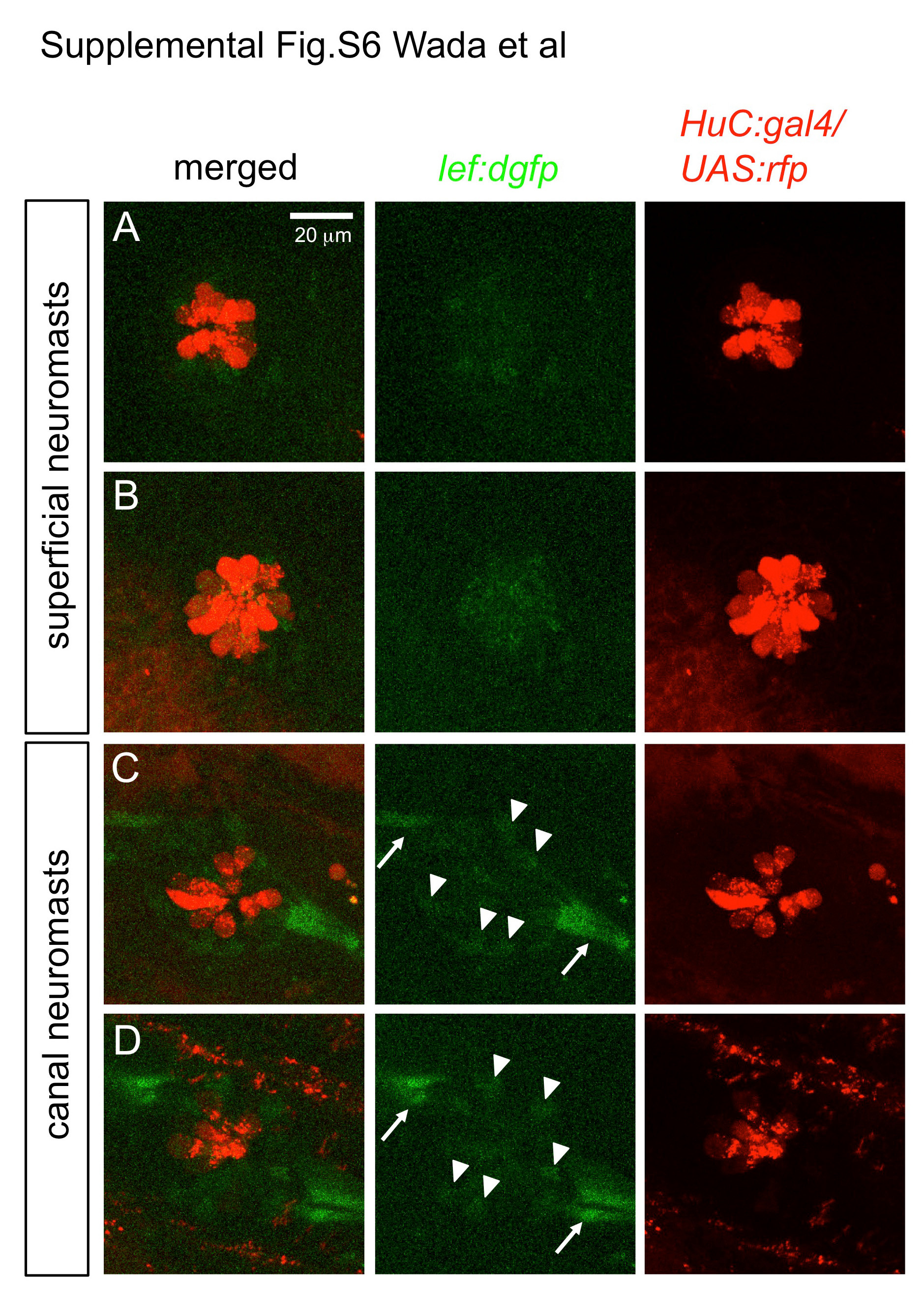

Wnt reporter activity is detectable in canal neuromasts, but not in superficial neuromasts in lef:dgfp line (13-15 mm SL, Shimizu et al., 2012). (A, B) Superficial neuromasts. (C, D) Canal neuromasts. Hair cells were visualized in the HuC:gal4; UAS:rfp transgenic lines (Kimura et al., 2008). Arrowheads indicate lef:dgfp-positive cells within neuromasts. Arrows indicate interneuromast cells, that are also lef:dgfp positive.
