Fig. S6

ID
ZDB-IMAGE-140122-15
Source
Figures for Venkiteswaran et al., 2013
Figure Caption

Fig. S6

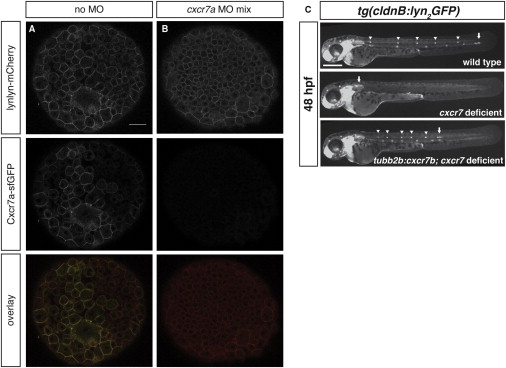

Characterization of cxcr7a Morpholino Mix and Rescue of Primordium Migration in cxcr7-Deficient Embryos Expressing cxcr7b in the Posterior Lateral Line Nerve, Related to Figures 1 and 4

(A and B) Confocal sections through embryos injected with an mRNA mix coding for cxcr7a-sfGFP and lyn2-mCherry without (A) or with translation blocking cxcr7a morpholinos A and B (B). Scale bar, 30 μm.

(C) Position of primordia in representative embryos of the indicated genotypes. Scale bar 300 μm.
