Fig. 8

ID
ZDB-IMAGE-140107-17
Source
Figures for McMillan et al., 2013
Figure Caption

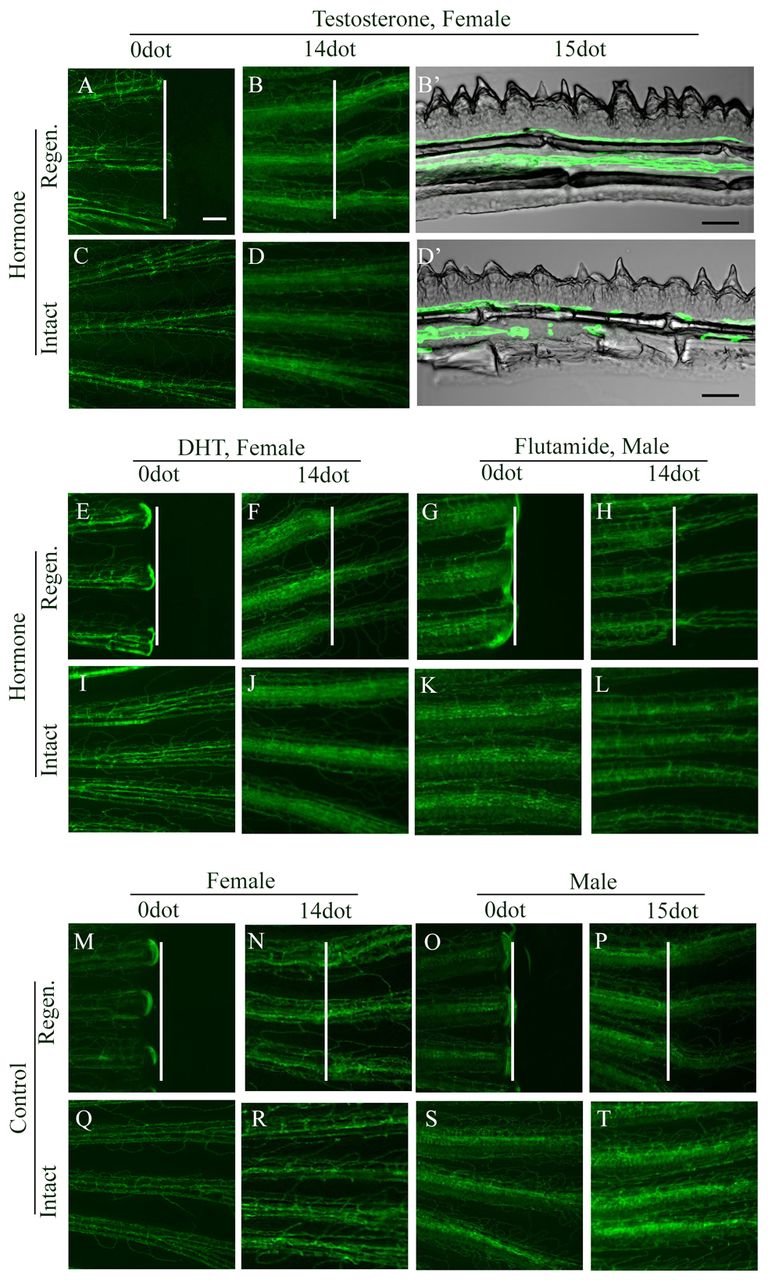

Fig. 8 Androgens induce neo-angiogenesis in intact and regenerating pectoral fins. (A-F,I,J) Intact and regenerating fins of T-treated (B,B′,D,D′) and DHT-treated (F,J) females (14 dot) develop vascularized BTs not observed at 0 dot (A,C,E,I). (G,H,K,L) Blood vessels of flutamide-treated (14 dot) male intact and regenerating fins acquire a female-like appearance. (M-T) Control untreated females (M,N,Q,R) and males (O,S,P,T). White lines indicate the amputation plane. Scale bars: 100 μm, except 50 μm in B′,D′.
