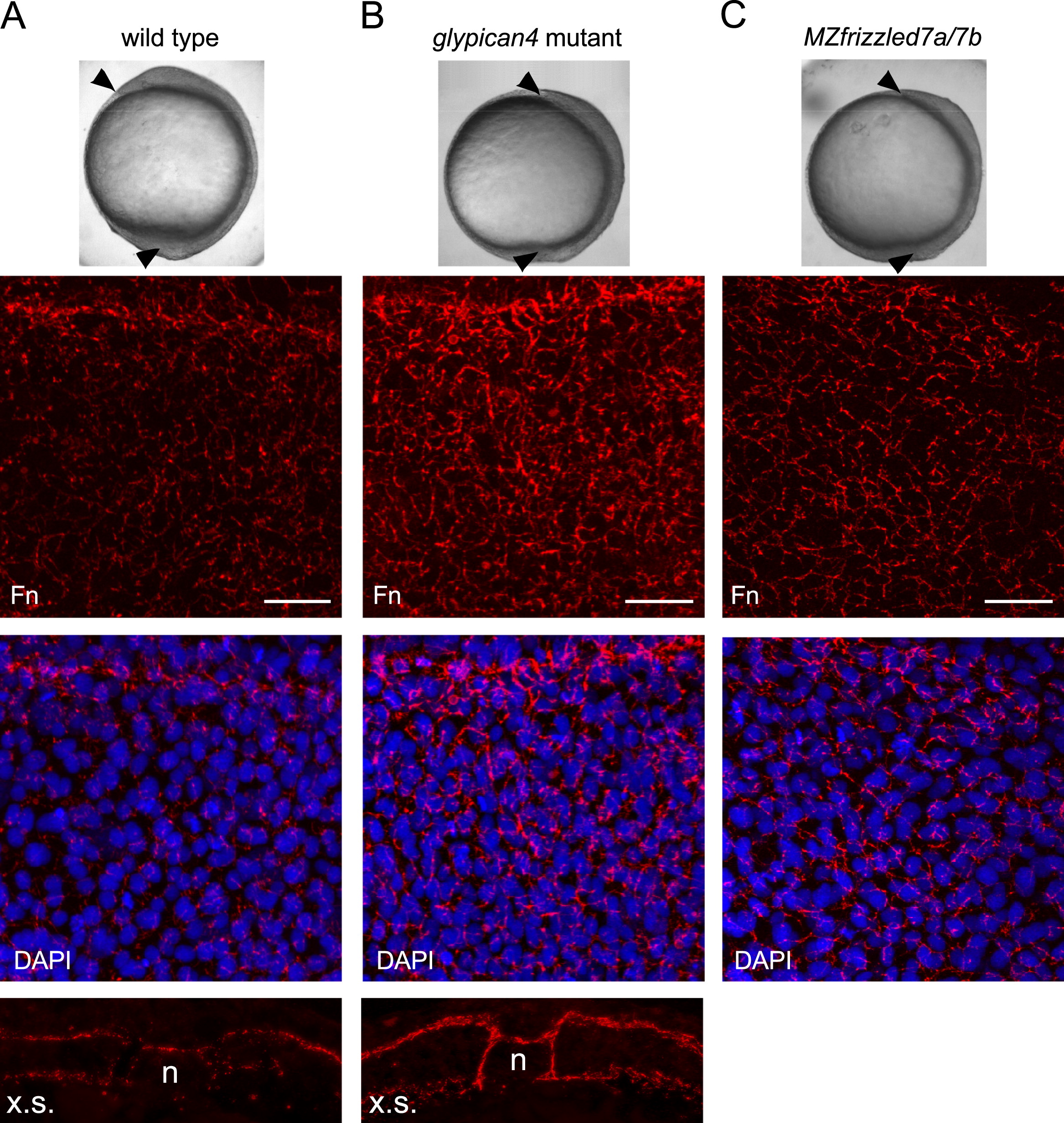

Fig. 3 glypican4 and frizzled7 mutant embryos have increased fibronectin assembly. (A–C) Top panels show morphological convergence and extension phenotypes at tailbud stage (see arrowheads) of wild type, glypican4 mutant, and MZfrizzled7a/7b mutant embryos. Middle two panels show confocal images of fibronectin (Fn) immunolabeling without and with nuclear DAPI staining. Scale bars=20 μm. The bottom images in (A) and (B) show Fn expression in cross-sections (x.s.) of tailbud stage embryos (n, notochord).
