Fig. 5

ID
ZDB-IMAGE-131015-33
Genes
Source
Figures for Zhang et al., 2013
Figure Caption

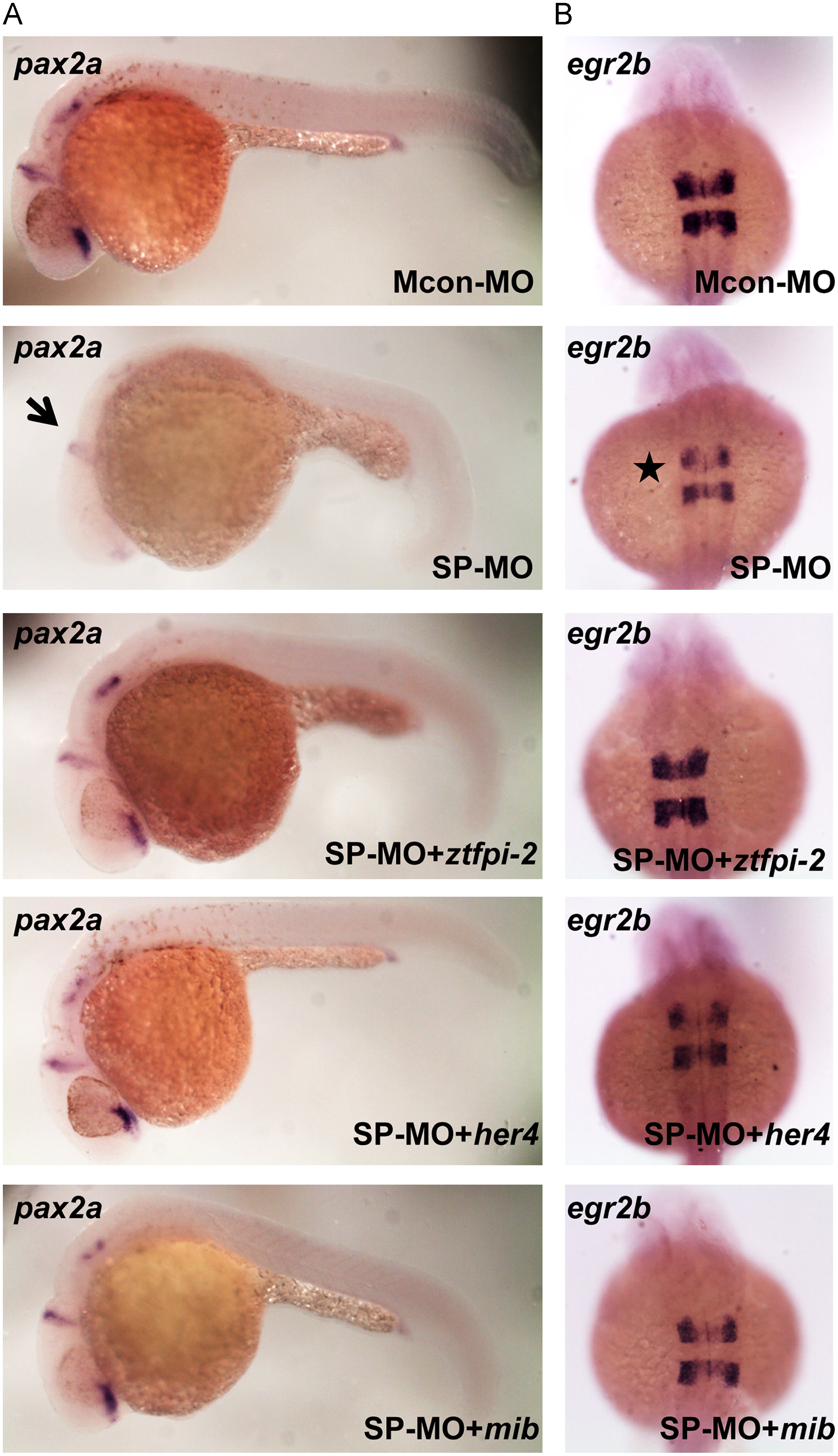

Fig. 5 ztfpi-2 regulated the development of the midbrain and hindbrain. All views are lateral. Expression of pax2a in the MHB (A) egr2b in rhombomere 5 (B) at 25 hpf. Embryos injected with 0.5 mM SP-MO displayed weaker expression of pax2a (arrow) and egr2b (asterisk) than those exposed to 0.5 mM Mcon-MO, while wild-type ztfpi-2 RNA was able to rescue their expression in the same region. Also, her4 and mib were able to partially rescue the ztfpi-2 defects in the midbrain and hindbrain. Scale bar: 50 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 381(1), Zhang, Y., Wang, L., Zhou, W., Wang, H., Zhang, J., Deng, S., Li, W., Li, H., Mao, Z., and Ma, D., Tissue factor pathway inhibitor-2: A novel gene involved in zebrafish central nervous system development, 38-49, Copyright (2013) with permission from Elsevier. Full text @ Dev. Biol.
