Figure Caption

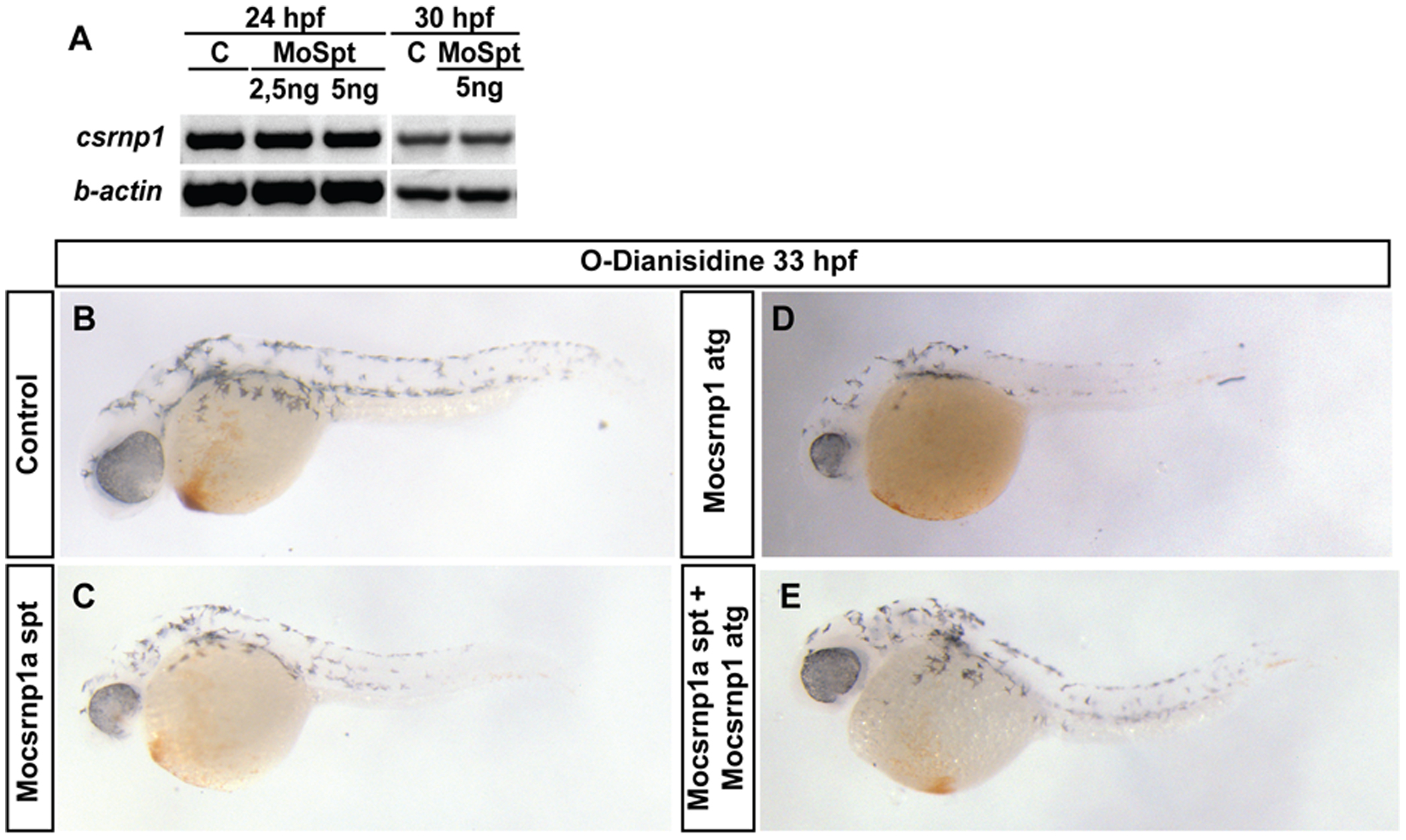

Fig. 3 Csrnp1a reduction does not affect csrnp1 expression, but has redundant function in the appearance of circulating blood cells.
RT-PCR against csrnp1 message in control and csrnp1a morphant embryos (A) showing no differences in the csrnp1 expression at 24 and 30 hpf at the Mocsrnp1a spt concentration used. (B to E) O-dianisidine stain showing the decrease in blood cells in 38,7% of csrnp1a injected embryos (C); 22,6% of the csrnp1 morphant embryos (D), and 64,4% when csrnp1 and csrnp1a morpholino are co-injected (E).
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS One
