Fig. 4

ID
ZDB-IMAGE-130211-33
Genes
Source
Figures for Ma et al., 2012
Figure Caption

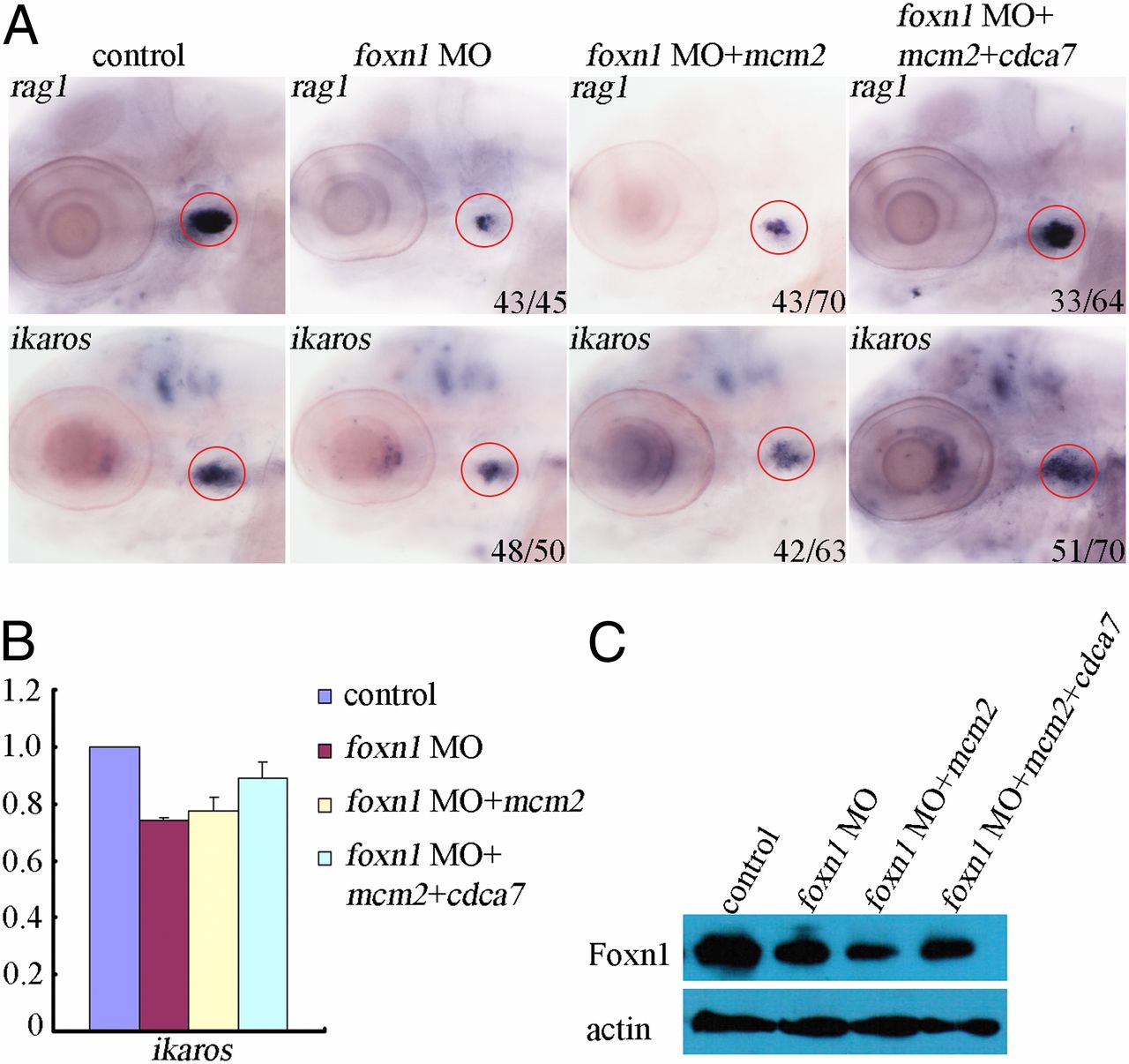

Fig. 4 The expression of rag1 and ikaros can be rescued in foxn1 morphants coinjected with mRNAs. (A) The expression of rag1 and ikaros in foxn1 morphants coinjected with mRNAs using WISH. (B) The expression of ikaros in foxn1 morphants coinjected with mRNAs using qRT-PCR (mean ± SD, n = 3). (C) The protein level of Foxn1 in foxn1 morphants coinjected with mRNAs.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Proc. Natl. Acad. Sci. USA
