ZFIN Image: Giurumescu et al., 2012, Fig. 1


Figure Caption

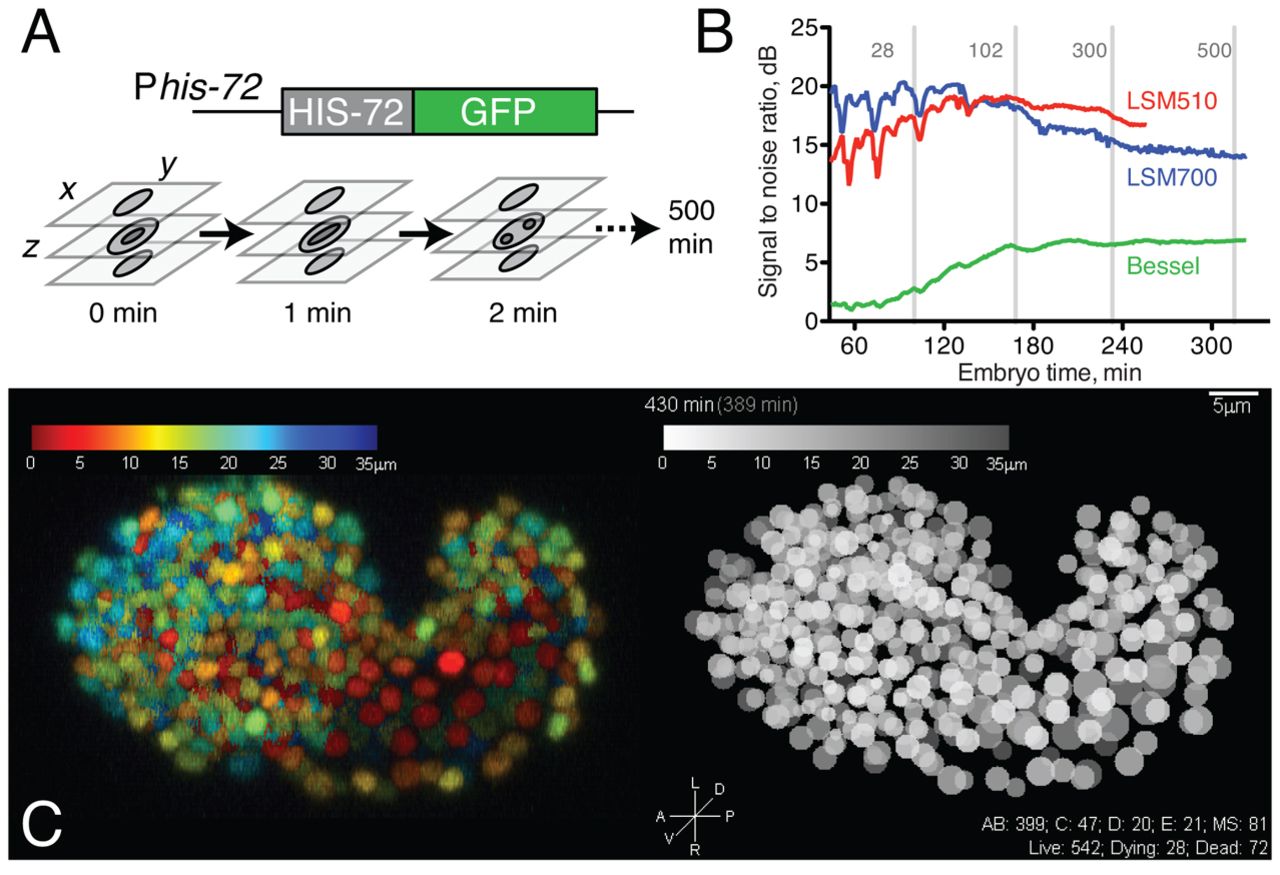

Fig. 1 4D data acquisition and image properties. (A) Schematic of acquisition setup. We use laser scanning confocal microscopy to acquire z-stacks every minute for 5 hours of embryo development followed by z-stacks every two minutes for 3 hours at 20-24°C. Acquisition of each stack takes 12-15 seconds at 512 × 275 × 35 voxels. (B) Comparison of signal-to-noise ratio (SNR) of raw data from 4D movies taken using Zeiss LSM510, Zeiss LSM700 and Bessel beam microscopy. Image acquisition was optimized for image quality compatible with viability; under these parameters, the LSM510 and LSM700 data sets showed comparable SNR. (C) Comparison of confocal image (color depth code, projection of LSM700 z-stack, 430 minutes) with digital representation (gray scale depth code).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
