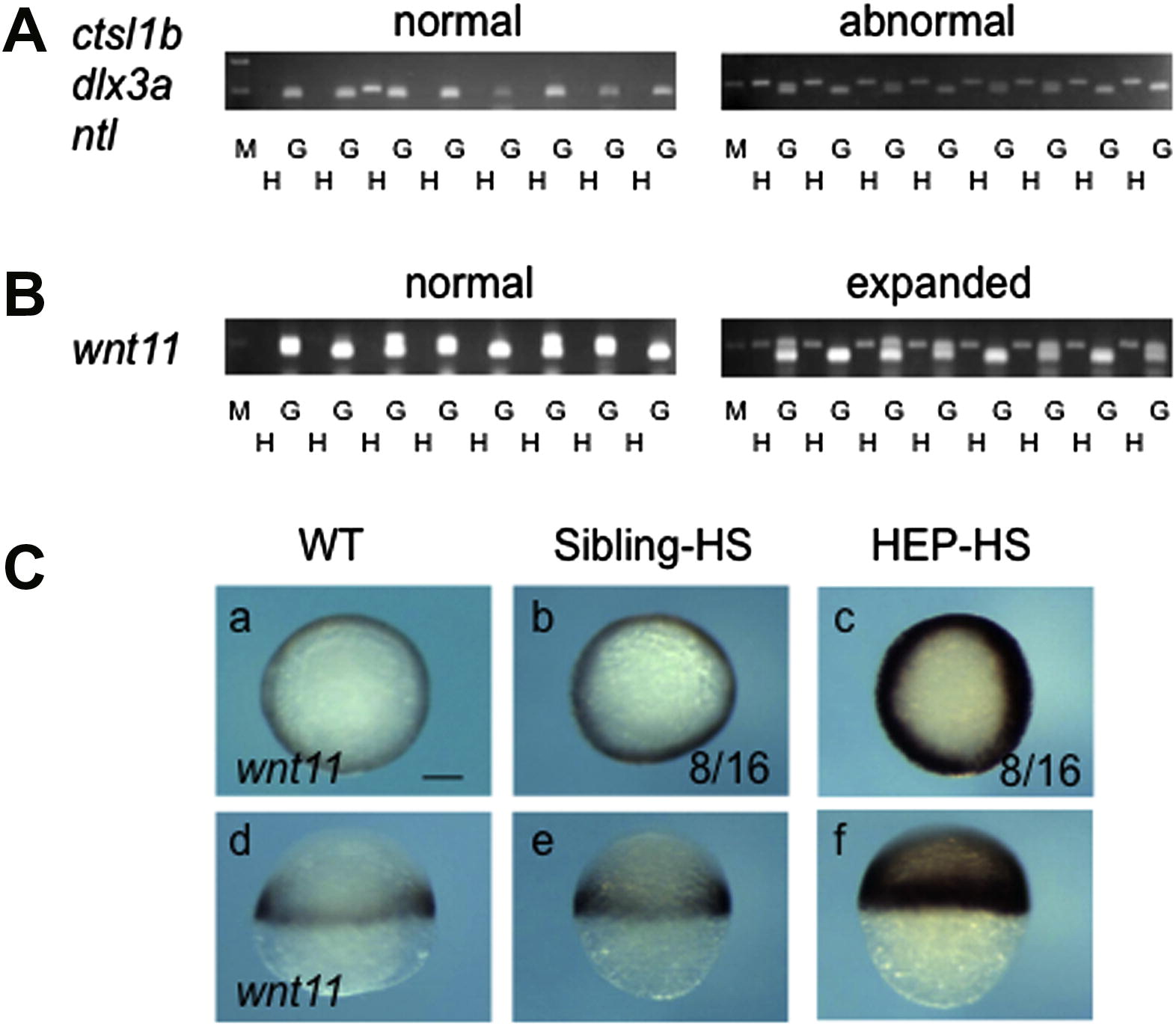

HEP induction at 30% epiboly upregulates wnt11 expression at the blastoderm margin. Embryos from crosses of wild-type and HEP^+/- transgenic (Tg) fish were exposed to heat shock at 30% epiboly and later examined for gene expression. (A, B) Embryos that were normal or abnormal in terms of gene expression at the bud stage (A) or 50% epiboly (B) were subjected to genotyping. The data demonstrated that normal embryos were negative and abnormal embryos were positive for HEP. G, genomic sequences amplified for the positive control; H, HEP-derived sequences showing that the embryos were transgenic; M, size markers (500 and 200 bp). (C) Embryos subjected to heat shock were examined for wnt11 expression (right two columns). About half of the embryos showed extensive upregulation (HEP-HS). (a–c) Animal views. (d–f) Lateral views. Scale bar, 200 μm.
