Fig. S4

ID
ZDB-IMAGE-111025-12
Source
Figures for Perlin et al., 2011
Figure Caption

Fig. S4

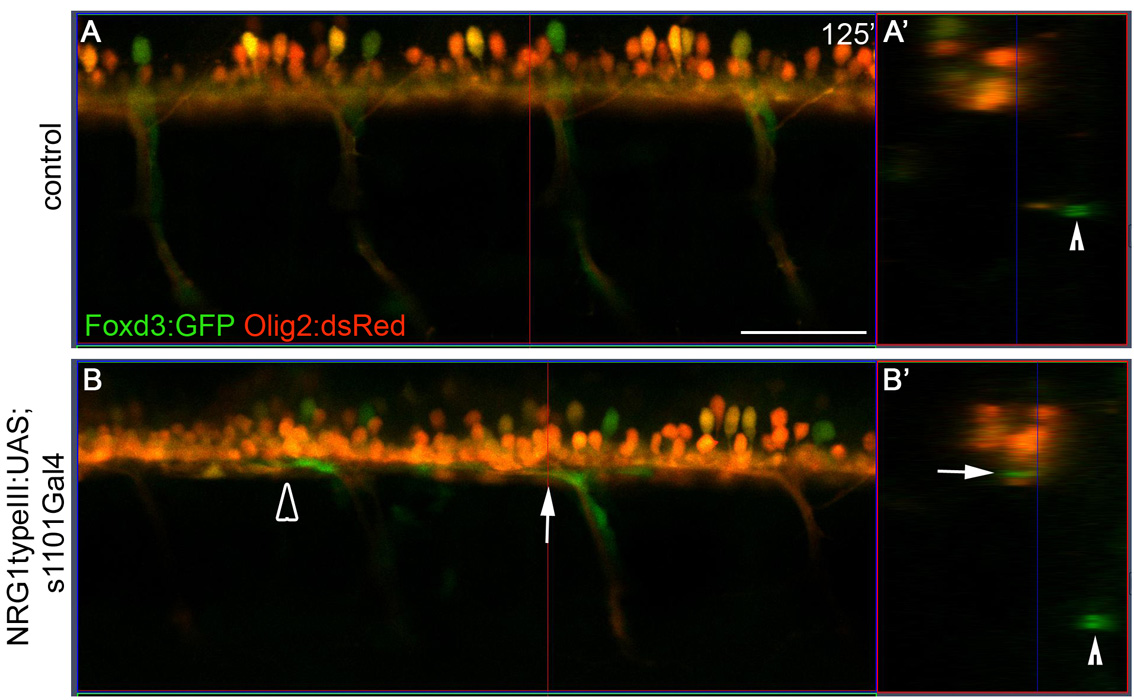

Schwann cells migrate within the spinal cord of embryos overexpressing human NRG1 type III. (A,B) Lateral views of single scans from in vivo time-lapse movies of a control embryo (A; see Movie 1 in the supplementary material) and an embryo overexpressing human NRG1 type III in all neurons (B; see Movie 2 in the supplementary material) at 125 minutes. Schwann cells are marked by the Foxd3:GFP transgene (green) and oligodendrocytes and motoneurons are marked by Olig2:dsRed (red). (A2,B2) Orthogonal view of the yz plane at the location of the vertical red lines in A and B. Arrowhead marks PLLn (A2,B2); arrow points to Foxd3:GFP staining within the Olig2:dsRed-marked spinal cord (B2). The open arrowhead marks the Schwann cell that is tracked by the open arrowhead in Fig. 6D-I,K,K2. Anterior is to the left, dorsal is up. Comparable regions over the yolk extension were imaged. Embryos were genotyped after imaging. Scale bar: 50 μm.
