Fig. 2

Thapsigargin Treatment Rapidly Activates Conserved Vertebrate ER Stress Pathways to Induce Apoptosis

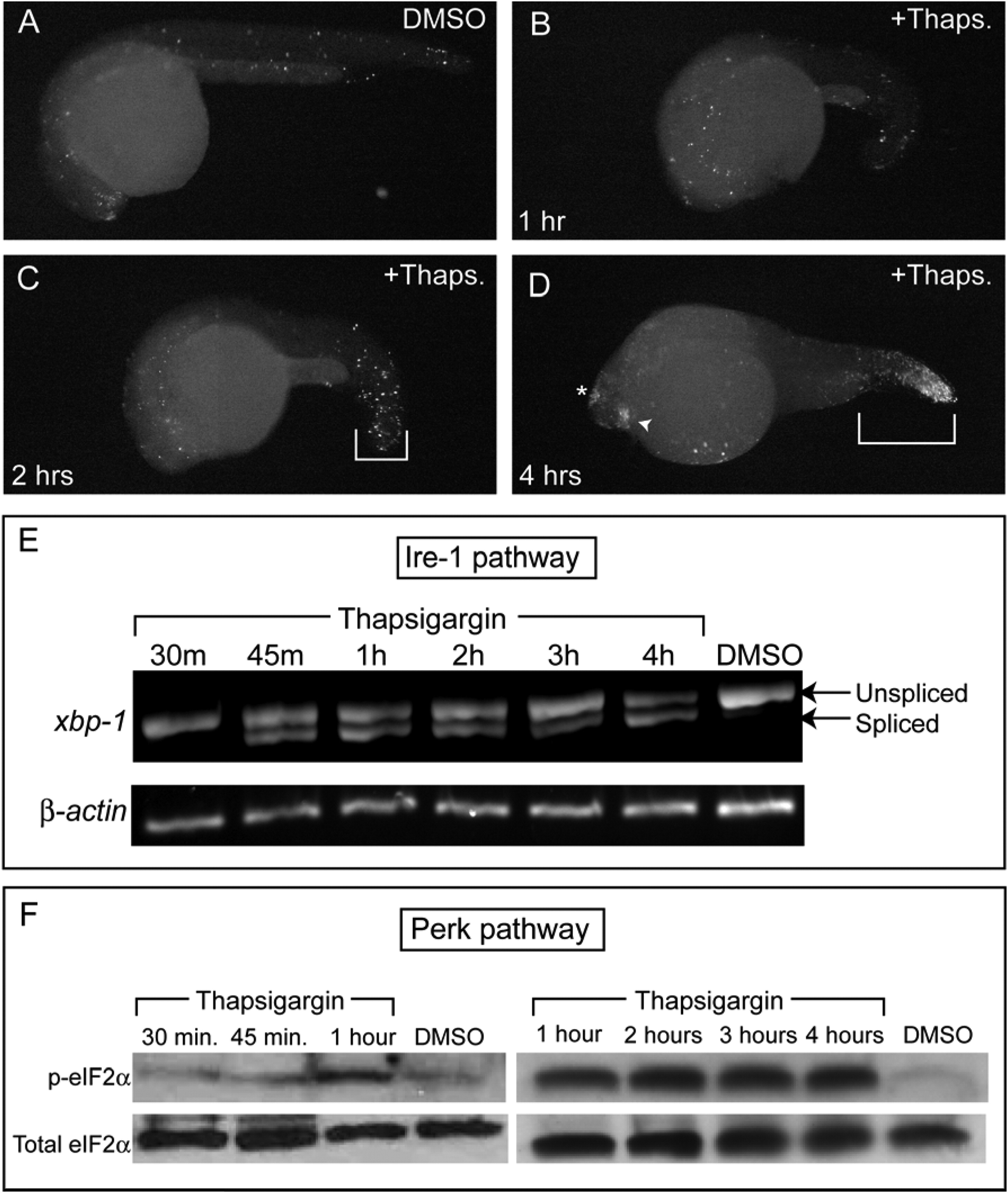

(A–D) TUNEL staining was performed in fixed embryos after (A) 4 hr of DMSO treatment or after (B) 1 hr, (C) 2 hr, or (D) 4 hr of thapsigargin treatment. (C) Increased apoptosis was first apparent in the tail by 2 hr of thapsigargin treatment, but robust apoptosis in the lens, epiphysis, and tail was evident only after (D) 4 hr of thapsigargin treatment compared to DMSO controls at the same stage. All images are representative of embryos examined at each time point (n = 10 in all treatments except D, where n = 9).

(E) By RT-PCR, xbp-1 splicing in the Ire-1 pathway was first apparent after 45 min of thapsigargin treatment, and was maintained over 4 hr. Note the lower band present from 45 min on, which corresponds to the nonconventional splice-form downstream of Ire-1 activation.

(F) Antiphospho eIF2α immunoblots showed that eIF2α was robustly phosphorylated in the Perk pathway from 1 hr through the end of the thapsigargin time-course. Total eIF2α was immunoblotted as a loading control after stripping of the original blot.
