Fig. S4

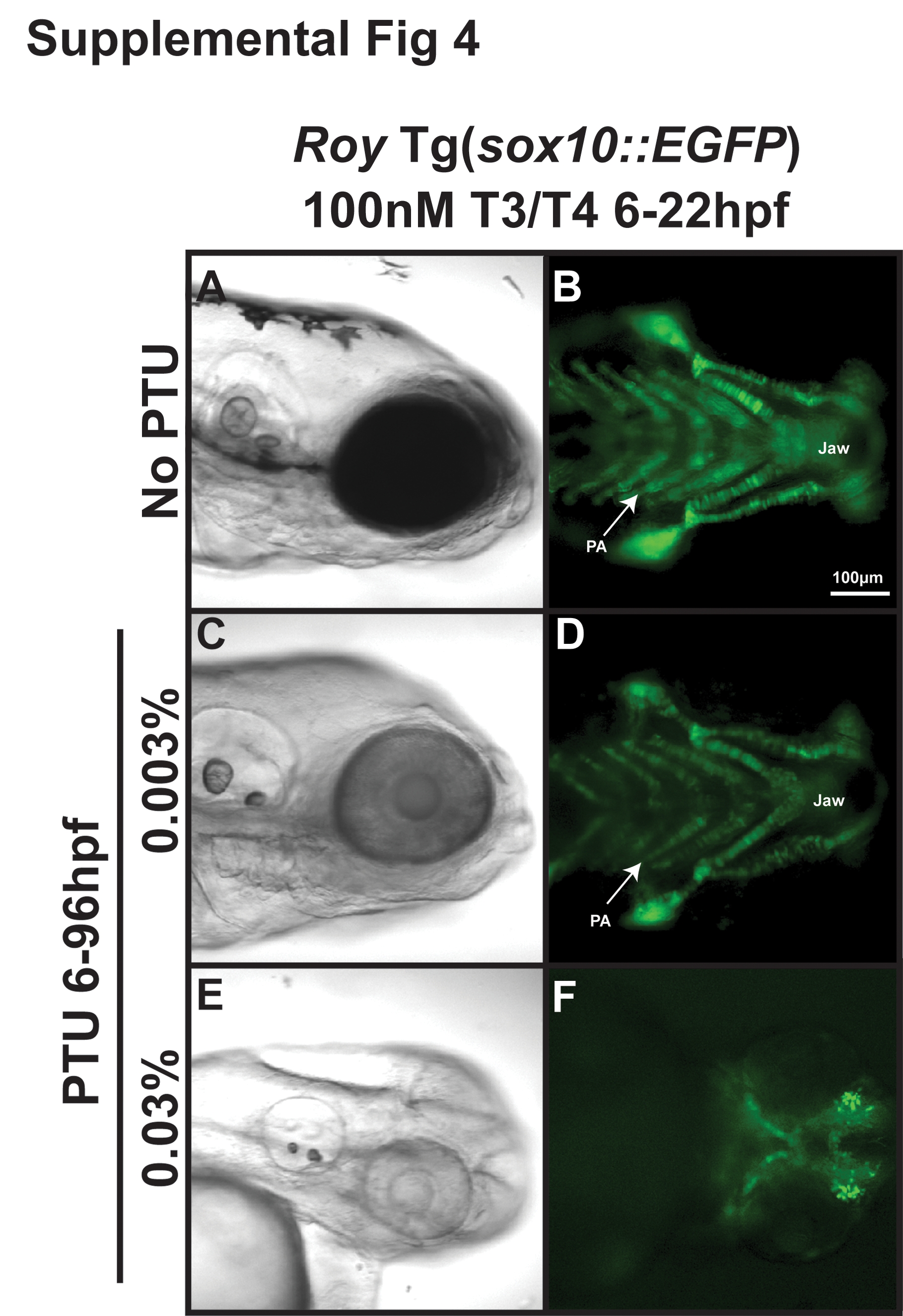

T3 and T4 are required after 22 hpf for rescue of PTU. 96 hpf roy Tg(α-actin::EGFP) were treated with 100 nM T3 and 100 nM T4 from 6 to 22 hpf in the absence (A, B) or presence of 0.003% (C, D) or 0.03% (E, F) PTU from 6 to 96 hpf. Exposure to exogenous T3 and T4 only between 6 and 22 hpf in the absence of PTU (A, B) or in the presence of 0.003% PTU (C, D) did not cause frontal bossing or displacement of jaw cartilage as was seen with exposure to T3 and T4 from 6 to 96 hpf (Figure 7A-D). Furthermore, exogenous T3 and T4 from 6 to 22 hpf did not rescue the craniofacial defects induced by 0.03% PTU (E, F).
