ZFIN Image: Ulrich et al., 2011, Fig. 2


Figure Caption

Fig. 2

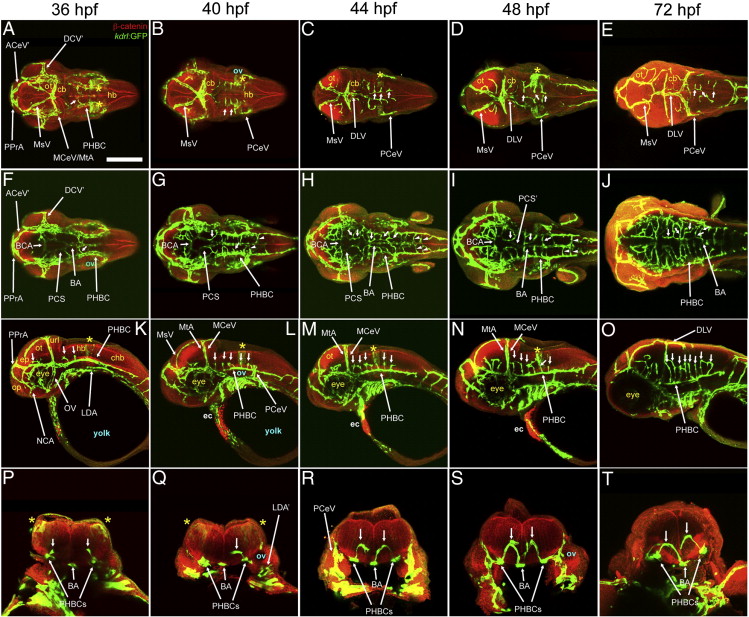

Overview of vascular development in the head and brain (36–72 hpf). A-T, Maximum intensity confocal projections of immuno-fluorescently stained embryos carrying the endothelial reporter Tg(kdrl:GFP)^1a116. Endothelium, green (GFP). Cell outlines, red (β-catenin). Ages (hpf) indicated on top. Abbreviations (see Table 1): vasculature, white (with apostrophe, right side). Neuroepithelium, yellow. Other structures, blue. Small white arrows, CtAs. White arrowheads in (G-I) PHBC-BA connections. Yellow asterisk, r5 GFP-positive neuroepithelial signal from the Tg(kdrl:GFP)^1a116 reporter. A-J, Dorsal views. Age-matched images from the same embryo collected at dorsal (A-E) and ventral (F-J) levels. Anterior, left. Left side, bottom. K-O, Left lateral views. Anterior, left. Dorsal, up. P-T, Transverse cross-sections of the posterior hindbrain at approximately the r5-r6 level. Dorsal, up. Left side, left. Scale bar (A): 200 μm for A-O and 100 μm for (P-T).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 357(1), Ulrich, F., Ma, L.H., Baker, R.G., and Torres-Vazquez, J., Neurovascular development in the embryonic zebrafish hindbrain, 134-51, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
