Figure Caption

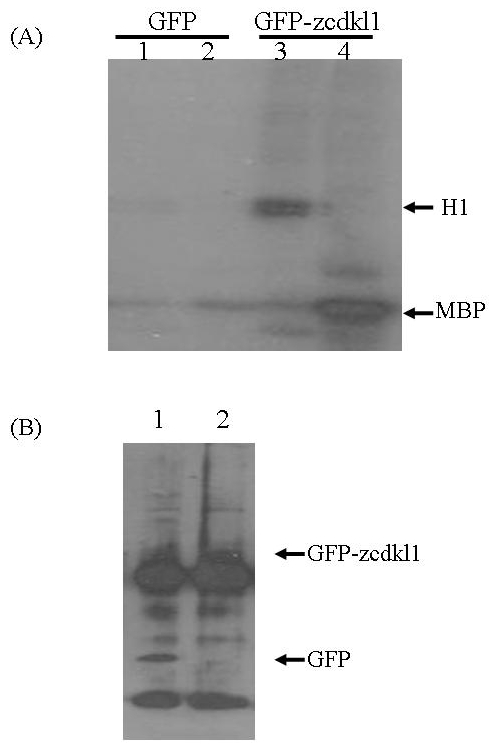

Fig. 2
Kinase activity assay of zcdkl1 in HEK 293 cells transfected with pEGFP or pEGFP-zcdkl1. Twenty-four h post-transfection, cells were lysed with lysis buffer and subjected to immunoprecipitation with anti-GFP antibody. (A) Immunoprecipitated complexes underwent in vitro kinase assay using myelin basic protein (MBP) and histone H1 as substrates. Phosphorylation of histone H1 (lane 1 and 3) and MPB (lanes 2 and 4) was detected by autoradiography; (B) Immunoprecipitated complexes (lane 1 for GFP alone; lane 2 for GFP-zcdkl1) were subjected to Western blot analysis using anti-GFP antibodies.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
