ZFIN Image: Fujimoto et al., 2011, Fig. 1


Figure Caption

Fig. 1

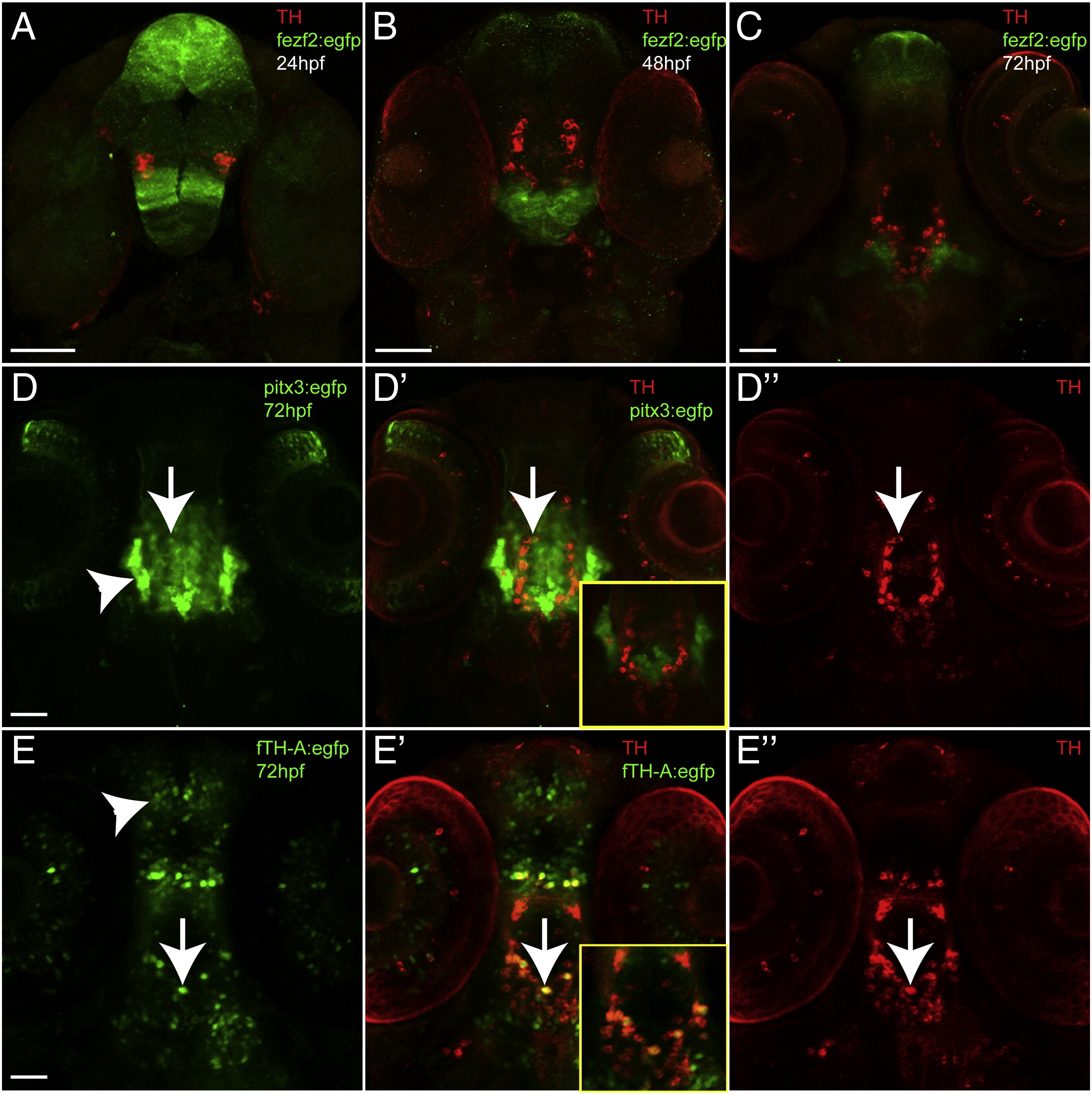

Examples of stable transgenic enhancer lines generated; ventral views, anterior to the top, double-immunohistochemistry for GFP and TH (green and red), confocal z-stacks. Scale bars are 50 μm. (A–C) Time-series of Tg(fezf2:egfp)^zc55 expression at 24 hpf, 48 hpf, and 72 hpf, shows non-overlap of TH and GFP expression. (D–D3) Tg(pitx3:egfp)^zc50 and (E–E3) Tg(f.TH.A:egfp)^zc56 at 72 hpf, shows partial overlap of enhancer expression and TH (arrows), but also wide spread expression of the enhancer in non-TH neurons (arrowheads). Insets in D2 and E2 show single confocal plane of double-labeling, emphasizing the minimal overlap of TH and GFP labeling.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 352(2), Fujimoto, E., Stevenson, T.J., Chien, C.B., and Bonkowsky, J.L., Identification of a Dopaminergic Enhancer Indicates Complexity in Vertebrate Dopamine Neuron Phenotype Specification, 393-404, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
