Fig. S2
- ID
- ZDB-IMAGE-110112-50
- Publication
- Robert-Moreno et al., 2010 - Characterization of new otic enhancers of the pou3f4 gene reveal distinct signaling pathway regulation and spatio-temporal patterns
- All Figures
- Figures for Robert-Moreno et al., 2010
|
Figure Caption

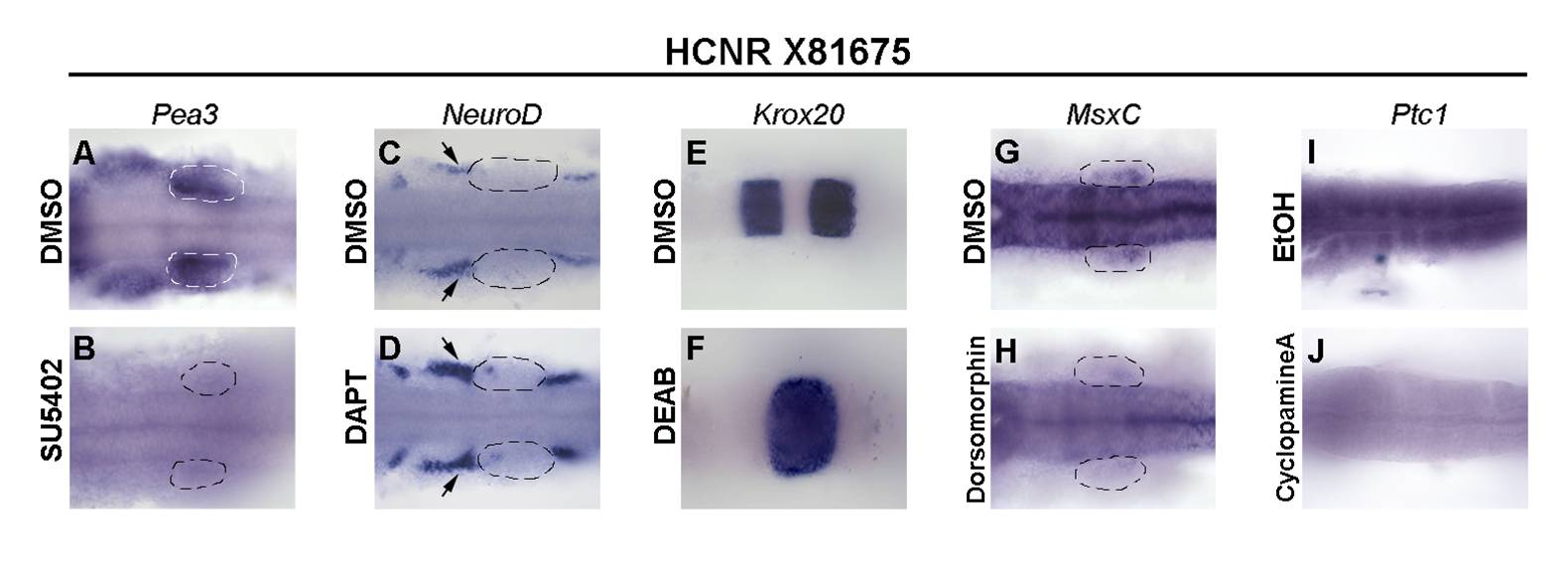

Fig. S2 Abrogation of different signaling target genes after treatment with specific signaling inhibitors. (A–J) In situ hybridization for the Fgf, Notch, Retinoic Acid, BMP and Sonic Hedgehog target genes pea3 (A–B), neuroD (C–D), krox20 (E–F), msxC (G–H) and ptc1 (I–J) to confirm inhibitor activity at our working concentrations. Dorsal view, orientation is anterior to the left.
