Fig. 5

ID
ZDB-IMAGE-090904-68
Genes
Publication
Arrington et al., 2009 - Extra-embryonic syndecan 2 regulates organ primordia migration and fibrillogenesis throughout the zebrafish embryo
All Figures
Figures for Arrington et al., 2009
Figure Caption

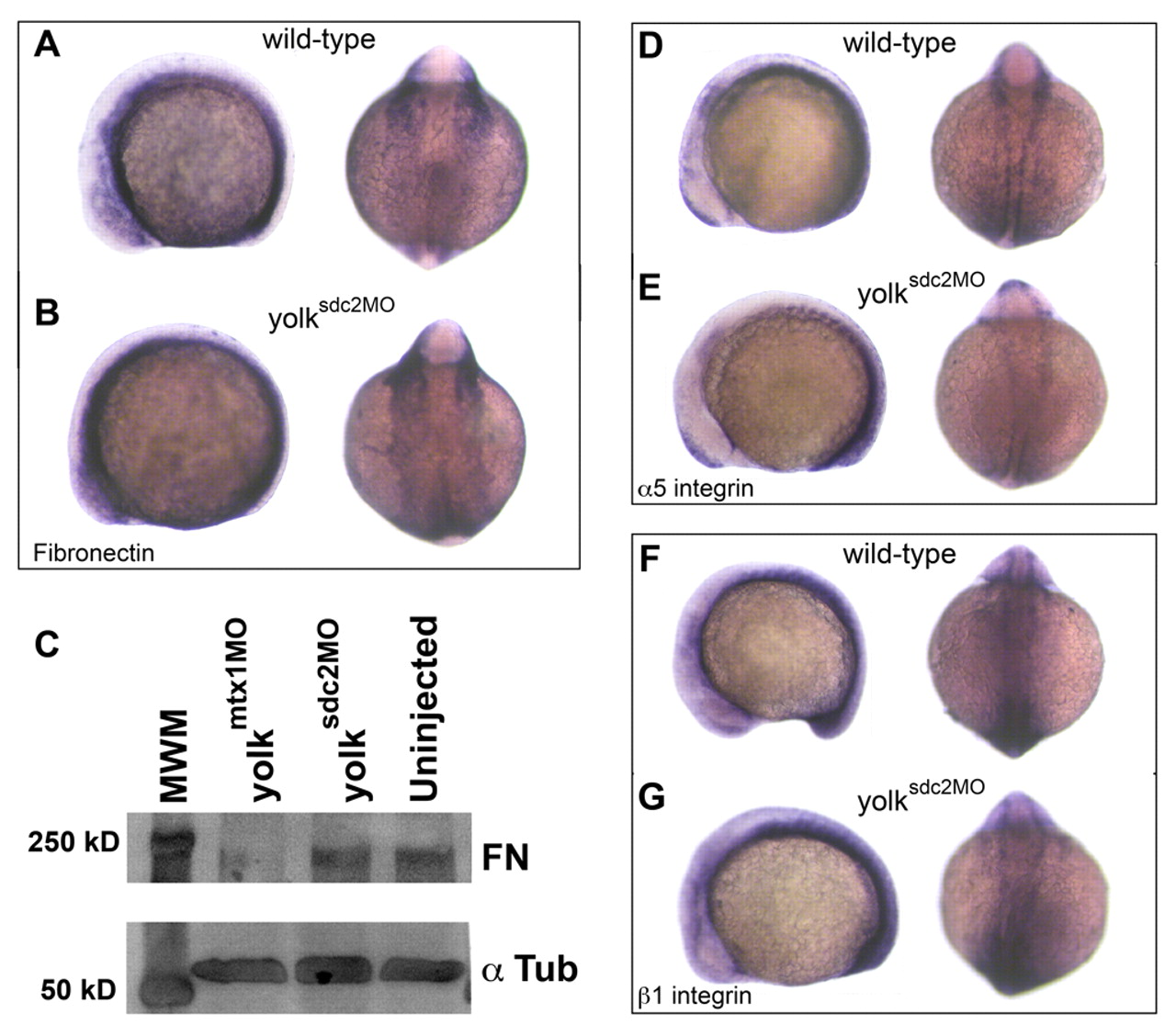

Fig. 5 Extra-embryonic Sdc2 controls fibronectin polymerization. (A,B) Lateral and dorsal views of wild-type (A) and yolksdc2MO (B) embryos at the 12-somite stage. fibronectin 1 mRNA expression patterns were normal in yolksdc2MO embryos. (C) Western blot experiment showing normal accumulation of fibronectin (FN) protein monomers in wild-type and yolksdc2MO embryos. yolkmtx1MO embryos have decreased fibronectin monomer accumulation due to decreased transcription of fibronectin 1 (Sakaguchi et al., 2006). α-tubulin (α Tub) was used as a loading control. (D-G) Lateral and dorsal views of wild-type (D,F) and yolksdc2MO (E,G) embryos at the 12-somite stage reveal similar expression patterns for mRNA encoding α5 integrin (D,E) and β1 integrin (F,G).

Figure Data
