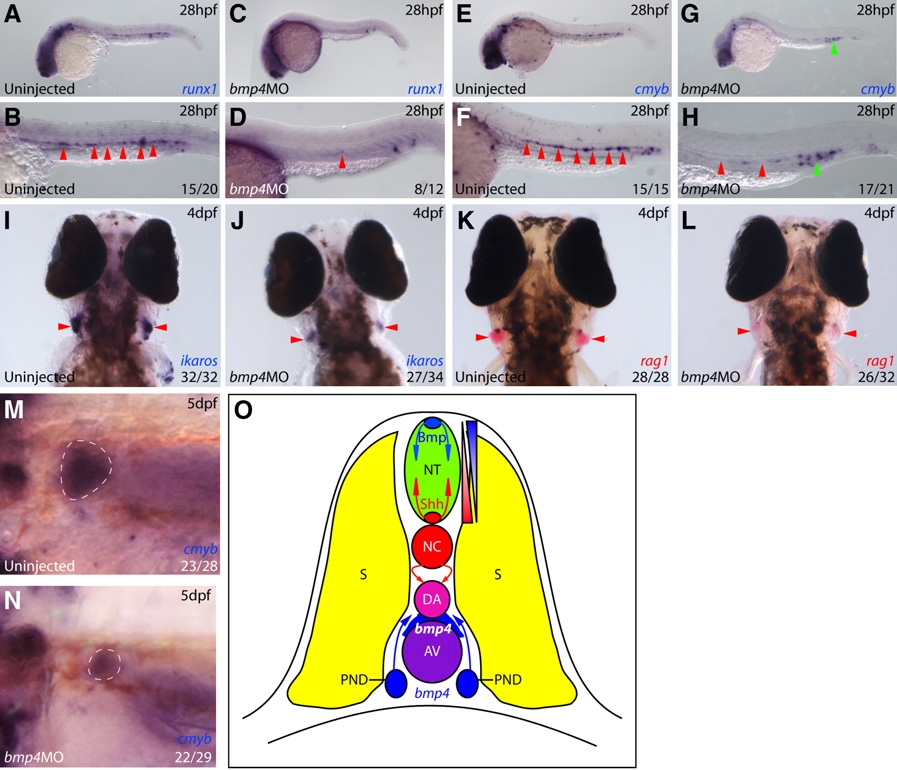

Fig. 4 bmp4 Is Required for HSC Emergence within the Ventral DA

(A–D) runx1 expression was absent from the DA (arrows) in 8/12 bmp4 morphants at 28 hpf (C and D), while the remaining 4/12 exhibited reduced expression compared with uninjected controls (A and B).

(E–H) At 28 hpf, 17/21 bmp4 morphants exhibited absent or substantially downregulated cmyb expression in the DA (red arrows).

(I and J) At 4 dpf, 27/34 bmp4 morphants exhibited substantial downregulation of ikaros expression within the developing thymi (arrows). The remaining 7/34 exhibited wild-type expression.

(K and L) At 4 dpf, 26/32 bmp4 morphants exhibited substantially reduced expression of rag1 in developing thymi (arrows), of which 7 exhibited no rag1 expression. The remaining 6/32 were wild-type.

(M and N) Dorsolateral views of the developing pronephros at 5 dpf depicting substantial downregulation of cmyb expression (outlined) in 22/29 embryos, of which 4/29 exhibited no expression. The remaining 7/29 were wild-type.

(O) Diagram of zebrafish trunk depicting polarization of the DA by dorsal Hedgehog and ventral Bmp signaling, mirroring the neural tube.
