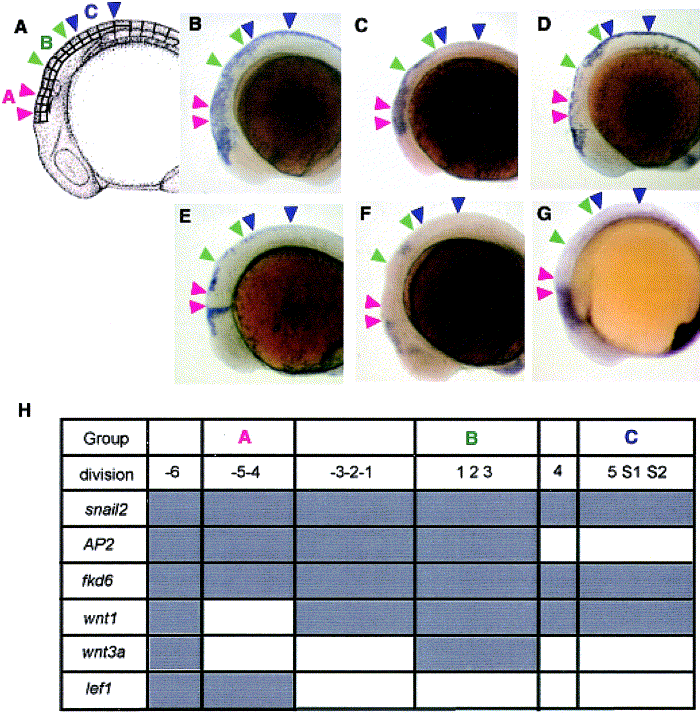

Fig. 5 Distinct gene expression patterns in three cardiac neural crest groups. (A–G) Lateral views of embryos at the eight-somite stage; cranial to the left and dorsal up. (A) Arrowheads in the diagram show the fate-map boundaries of the three cardiac neural crest groups along rostrocaudal axis: Group A (red), Group B (green), Group C (blue). (B–G) Whole-mount in situ hybridization of neural crest markers indicated a bottom of each panel. (H) Summary of neural crest gene expression patterns. The cardiac neural crest fate-map groups in which these genes are expressed are indicated in gray in the chart. wnt1 and wnt3a are not expressed in group A, and lef1 is weakly expressed. wnt3a is only expressed in group B.
