ZFIN Image: Li et al., 1997, Fig. 4


Figure Caption

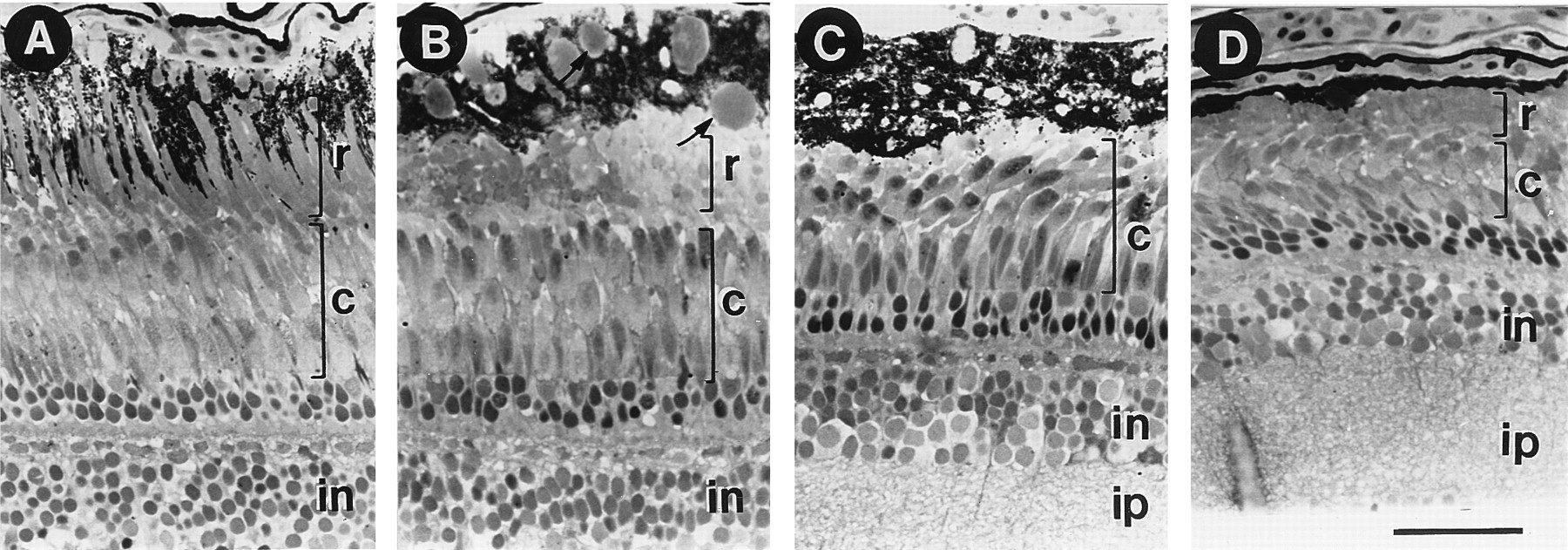

Fig. 4 Histological sections showing the photoreceptor layer of 13-month-old wild-type and nba retinas. (A) A section from the retinaof a wild-type fish. In the light adapted retina, the rods (r)sit distal to the cones (c). Processes from the pigment epithelium(PE) extend between the outer segments of the rods. (B-D) Sectionsfrom the central retina of one nba fish showing the variabilityof degeneration seen in various regions of the affected retina(see text for details). in, inner nuclear layer; ip, inner plexiformlayer. Arrows in B indicate the large lipid droplets in PE. [Bar= ≈100 μm (A) and 80 μm (B-D).]
