Figure Caption

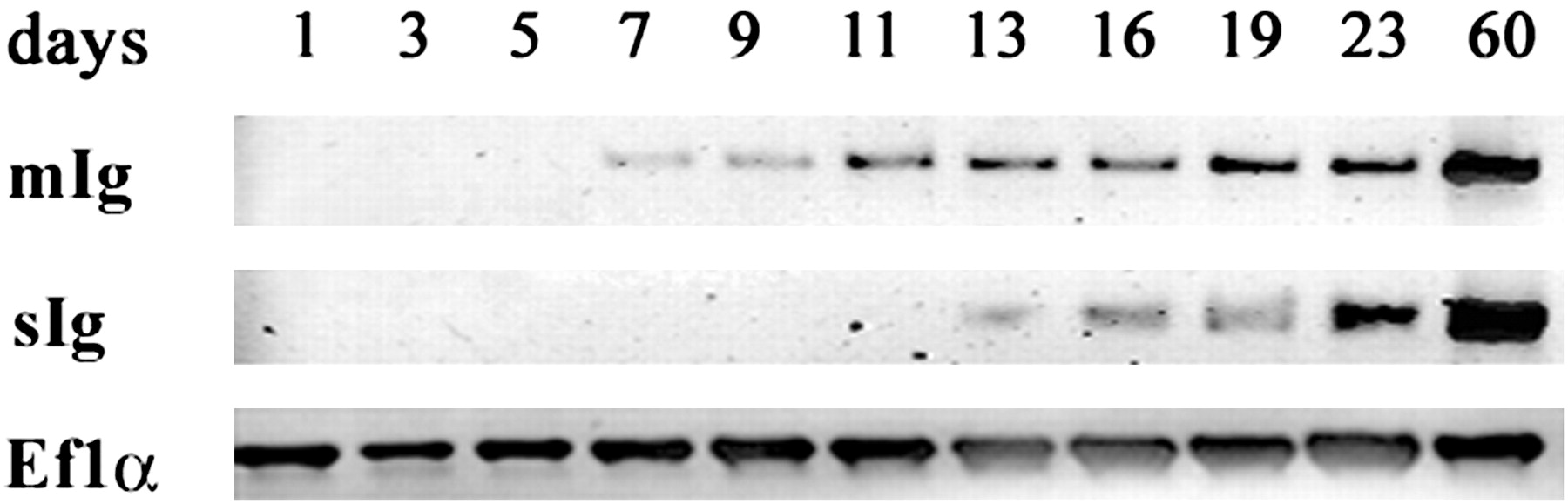

Fig. 2 Expression of membrane (mIg) and secreted (sIg) forms of Igμ during development, estimated by RT-PCR. Total RNA was prepared from 50-100 fish at each time point. PCR was performed with an upstream primer, Cμ3S, corresponding to a segment of the CH3 domain, which is found in both the secreted and membrane forms of Igμ; the downstream primers, Ctail and tm2, are specific for the secreted and membrane carboxyl-terminal tail pieces, respectively. The expression of elongation factor 1α served as a standard.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Proc. Natl. Acad. Sci. USA
