Fig. 6

ID

ZDB-IMAGE-080225-23

Genes

Publication

Patterson et al., 2008 - Growth in the larval zebrafish pectoral fin and trunk musculature

All Figures

Figures for Patterson et al., 2008


Figure Caption

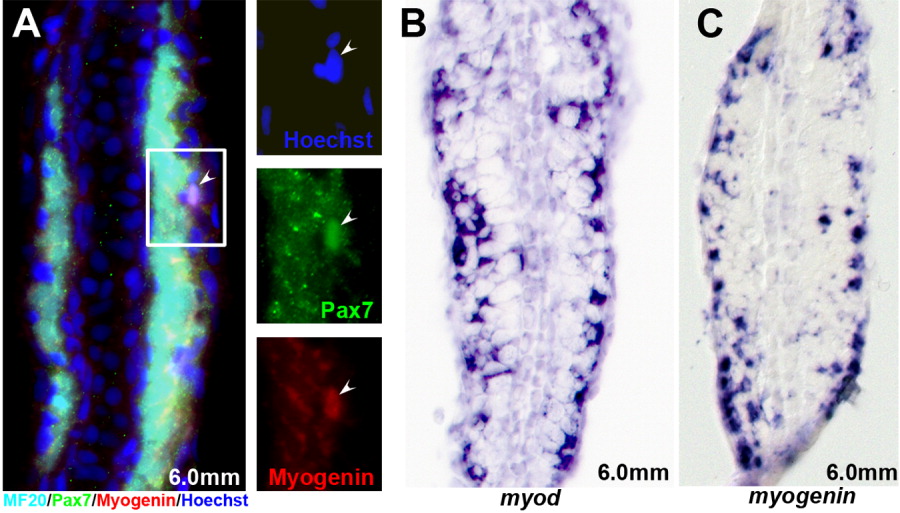

Fig. 6 Molecular characterization of myogenesis corresponds with the location of new, small diameter fibers. A-C: Expression of molecular markers of myogenesis in 6.0 mm larval pectoral fins. A: Pax7 (Green) is expressed in cells superficial to the existing muscle masses (MF20, Cyan). A subset of Pax7 expressing cells coexpress Myogenin (Red), signifying myogenic differentiation. Insets signify boxed region and show a nucleus that expresses both Pax7 and Myogenin (arrowheads). B: The muscle regulatory factor myod is expressed by cells at the periphery of the muscle masses. C: Myogenin is expressed by cells at the periphery of the muscle masses. Scale bar = 25 μm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
