Fig. 1

ID
ZDB-IMAGE-071004-18
Genes
Source
Figures for Oates et al., 2005
Figure Caption

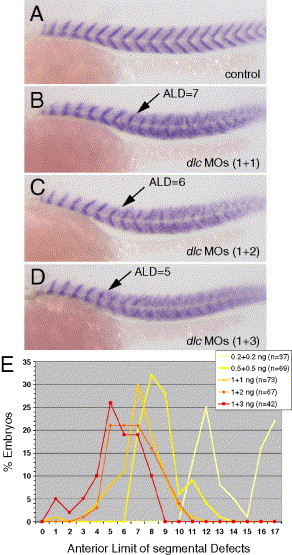

Fig. 1 Effect of reduction of deltaC function on zebrafish segmentation. (A–D) Myotome boundaries of the trunk marked by titin expression are shown in 26 hpf embryos in lateral view with anterior to the left and dorsal upwards. Arrows in panels (B–D) indicate Anterior Limit of Defects (ALD) in each embryo. (A) Uninjected control. Representative embryos injected with 1 ng/nL (B), with 1 and 2 ng/nL (C) and with 1 and 3 ng/nL (D) of each of the morpholinos dlcMO3 and dlcMO4, respectively. (E) Data from a histogram (plotted as line graph) showing the distribution of ALD for populations of embryos injected with increasing concentrations of combined morpholinos, indicating a final ALD at segment 5. Embryos injected with doses higher than 1 + 3 ng/nL of the combined morpholinos exhibited necrosis and non-specific defects and were not included.
