ZFIN Image: Blasiole et al., 2006, Fig. 4


Figure Caption

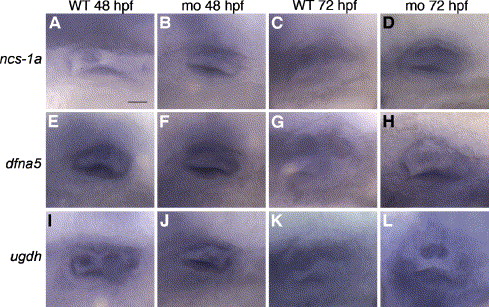

Fig. 4 Expression of semicircular canal markers in α1a.2 morphant ears. All panels are lateral views with anterior to the left. Embryos were injected with 2 ng of α1a.2 MO-1 at the one-cell stage. (A–D) ncs-1a staining in the otic vesicle (OV) of (A) 48 hpf wild type (WT) embryo, (B) 48 hpf morphant, (C) 72 hpf WT embryo, and (D) 72 hpf morphant. (E–H) dfna5 staining in OV of (E) 48 hpf WT embryo, (F) 48 hpf morphant, (G) 72 hpf WT embryo, and (H) 72 hpf morphant. (I–L) ugdh staining in OV of (I) 48 hpf WT embryo, (J) 48 hpf morphant, (K) 72 hpf WT embryo, and (L) 72 hpf morphant. mo, morphant. Scale bar: 25 μm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 294(1), Blasiole, B., Canfield, V.A., Vollrath, M.A., Huss, D., Mohideen, M.A., Dickman, J.D., Cheng, K.C., Fekete, D.M., and Levenson, R., Separate Na,K-ATPase genes are required for otolith formation and semicircular canal development in zebrafish, 148-160, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
