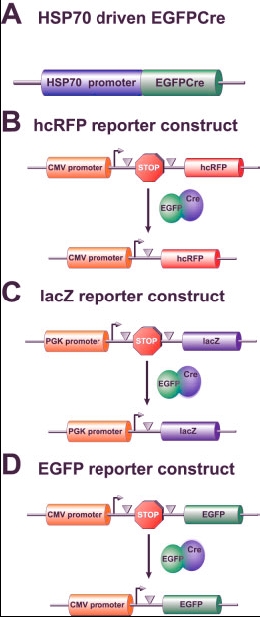

Fig. 1 Cartoon of HSP70-EGFP-cre and recombination reporter plasmids. A: HSP70-EGFP-cre construct. B: CMV driven hcRFP reporter construct. Gray triangles denote lox511 sites, and the red stop sign denotes the synthetic polyadenylation site and C2 termination site. C: PGK promoter driven lacZ reporter construct. Gray triangles denote loxP sites, and the red stop sign denotes the insertion of the neomycin (or G418) resistance gene and SV40 polyadenylation site. D: CMV-driven EGFP reporter (Cre Stoplight) construct. Gray triangles denote loxH (immediately 3’ to the CMV promoter) and loxP (3’ to the stop sign) sites, and the red stop sign denotes the insertion of the dsRFP gene and bovine growth hormone gene polyadenylation site. B-D: Small bent arrows denote transcriptional start sites, and the EGFP-Cre fusion protein is denoted by the fused green and blue spheres.
