Fig. 3

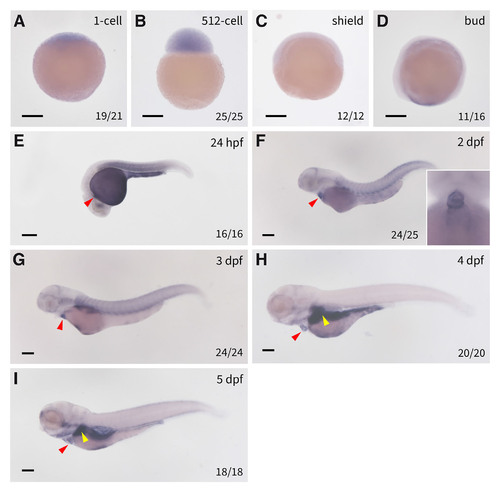

Spatiotemporal expression of cpt1ab in zebrafish embryos. Expression of cpt1ab in (A) 1-cell stage embryos, (B) 512-cell embryos, (C) shield stage embryos, (D) bud stage embryos, (E) 24 hpf embryos, (F) 2 dpf embryos (the inset is a ventral view of the embryo showing the expression of cpt1ab in the heart), (G) 3 dpf embryos, (H) 4 dpf embryos, (I) 5 dpf embryos. The red triangles denote the hearts, and the yellow triangles denote the liver and intestine. Scale bars: 200 µm. |
Expression Data
| Gene: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | 1-cell to Day 5 |
Expression Detail
Antibody Labeling
Phenotype Data
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Dev. Biol.
