Figure 6

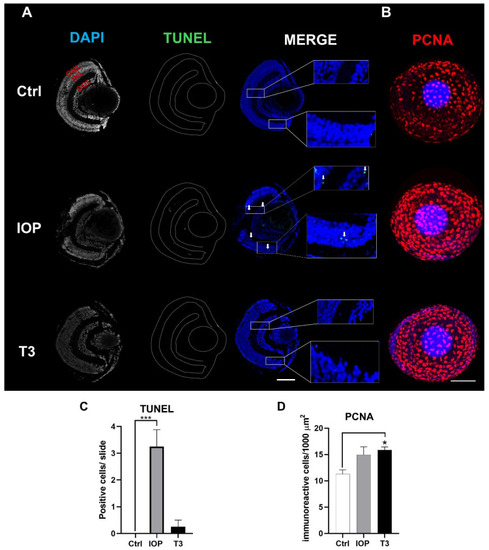

Cell death and cell proliferation after IOP and T3 treatments. (A) Microphotographs of sections of 5 dpf zebrafish retina showing apoptotic cells in retinal layers revealed by the TUNEL assay (green) and counterstaining with DAPI (blue). IOP induces an increase in apoptotic cells (white arrows) in the GCL and INL. (B) Confocal 3D reconstruction of a PCNA (red) whole mount retinal assay showing a significant increase in the proliferation profile in T3-treated larvae. (C) Quantification of apoptosis rate on the whole slide in the control (Ctrl), IOP, or T3 groups. (D) The quantification of whole-eye PCNA immunoreactivity in the control (Ctrl), IOP, or T3 groups. Bars represent the mean ± SEM. Scale bar = 50 µm. Statistical analysis was performed using one-way ANOVA with multiple comparisons and Tukey post hoc tests. * = p < 0.05, *** = p < 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Conditions:	chemical treatment by environment: Iopanoic acid chemical treatment by environment: thyroid hormone
Observed In:	retina apoptotic process retina cell population proliferation
Stage:	Day 5
