FIGURE

Figure 5

ID

ZDB-FIG-240620-279

Publication

Aranda-Martínez et al., 2024 - Zebrafish as a Human Muscle Model for Studying Age-Dependent Sarcopenia and Frailty

Other Figures

(all 6)

All Figure Page

Back to All Figure Page

Figure 5

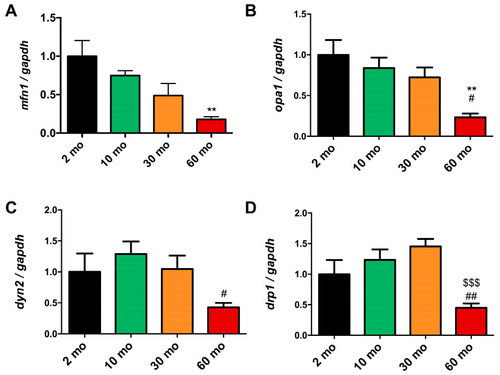

Reduction in mitochondrial dynamics in old fish. (A) The expression of mfn1 and (B) opa1 exhibited a decreasing trend with age, becoming significant at 60 months. (C) dyn2 expression increased at 10 months but also significantly decreased at 60 months. (D) The expression of drp1 increased at 10 and 30 months but showed a substantial decrease at 60 months. Data are presented as mean ± SEM (n = 6–8 animals/group). ** p < 0.01 vs. 2 mo; # p < 0.05 vs. 10 mo; ## p < 0.01 vs. 10 mo; $$$ p < 0.001 vs. 30 mo. One-way ANOVA with a Tukey’s post hoc test.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
