Fig. 9

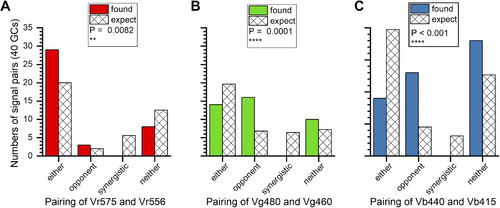

Selective association among cone pairs. In a 7-cone scheme there are 21 unique pairs. Three of these showed association patterns that differed from what would be expected. The expectation value is based on nonpreferential pairing according to the frequency that cone-type excitation or inhibition were found in the overall population of ganglion cells (GCs). Selective associations were R1-R2 (Vr575 and Vr556) (A), G1-G3 (Vg460 and Vg480) (B), and B1-B2 (Vb440 and Vb415) (C). No pairing of dual excitatory or dual inhibitory signals (synergistic) were found in any of these pairs, and excitatory-inhibitory pairing (opponent) exceeded expectation values. The probabilities of these distributions (P) are calculated from χ² tests (df = 3, n = 40). Both best-fit models and models indistinguishable from best fit are counted.
