Fig. 3

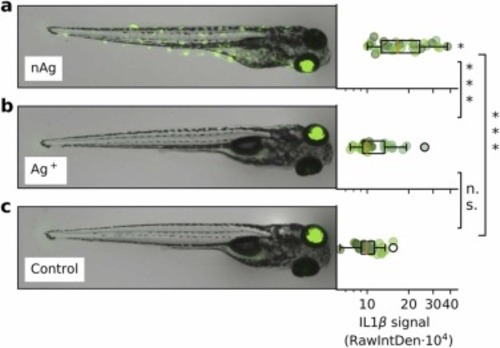

Fig. 3. Particle-specific inflammatory effect of silver nanoparticle exposures. Inflammatory effects were studied using Tg(il1ß:eGFP-F) reporter zebrafish larvae. Pictures show representative images of larvae, with quantification of GFP signal from the anterior side of the swim bladder up to and including the tail fin, following exposure to nAg (0.25 mg nAg·L-1; n = 30) (a), their shed ions (0.05 mg Ag+·L-1; n = 30) (b), and egg water lacking nAg and shed ions (n = 28) (c). Asterisks indicate significant differences: * ** , p < 0.001. Abbreviations: RawIntDent, Raw integrated density; n.s., non-significant.
