FIGURE

Fig. 1

ID

ZDB-FIG-220504-9

Publication

Choe et al., 2021 - Acute toxicity of the insecticide EPN upon zebrafish (Danio rerio) embryos and its related adverse effects: Verification of abnormal cardiac development and seizure-like events

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

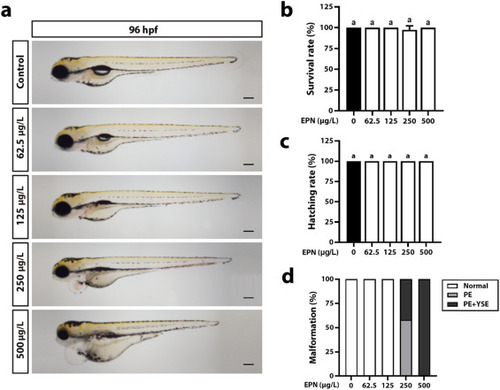

Effect of EPN in zebrafish embryos at 96 h post-fertilization (hpf). (a), Phenotypes of EPN-treated zebrafish embryos at serial concentrations of 62.5, 125, 250, and 500 μg/L; (b), survival rates (%) of EPN-treated zebrafish embryos at serial concentrations of 62.5, 125, 250, and 500 μg/L; (c), hatching rates (%) of EPN-treated zebrafish embryos at serial concentrations of 62.5, 125, 250, and 500 μg/L; (d), deformity rates (%) in the EPN-treated zebrafish embryos at the different concentrations of 62.5, 125, 250, and 500 μg/L. PE means pericardial edema, and YSE indicates yolk sac edema. BP means blood pooling. The scale bar represents 200 µm. A lowercase letter indicates a significant difference (p < 0.05).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Condition:	chemical treatment by environment: EPN
Observed In:	hatching behavior pericardium whole organism yolk syncytial layer
Stage:	Day 4

Phenotype Detail
