Fig. 5

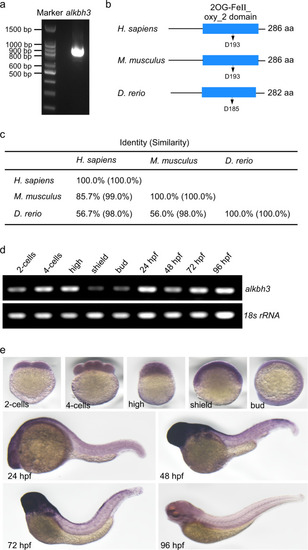

Molecular characterization of zebrafish <italic>alkbh3</italic> gene.

a Cloning of zebrafish alkbh3 by reverse transcription PCR. b, c Schematic comparison of ALKBH3 amino acid sequences from the indicated species. The conserved 2OG-Fe (II) oxygenase superfamily domains are shown in blue filled bars. The conserved amino acid residues D193 and D185 are indicated, respectively. d Reverse transcription PCR analysis of alkbh3 mRNA at the different embryonic stages in zebrafish. 18s rRNA was served as a loading control. e Whole-mount in situ hybridization of zebrafish alkbh3 mRNA at the indicated developmental stages in lateral view.
Expression Data
Gene:
Fish:
Anatomical Terms:
Stage Range: 4-cell to Day 4

Expression Detail
