FIGURE

Figure 5

ID
ZDB-FIG-211120-79
Publication
Lai et al., 2021 - MicroRNA-21 Plays Multiple Oncometabolic Roles in Colitis-Associated Carcinoma and Colorectal Cancer via the PI3K/AKT, STAT3, and PDCD4/TNF-α Signaling Pathways in Zebrafish
Other Figures
(all 11)
All Figure Page
Back to All Figure Page
Figure 5

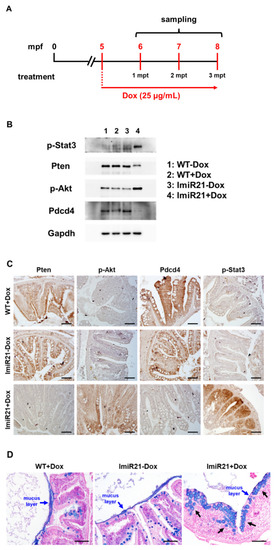

Chronic effects of intestinal miR-21 expression on colitis. (A) Schematic diagram of the Dox treatment strategy in adult ImiR-21. ImiR-21 larvae were treated with 25 μg/mL Dox from 5 to 8 months post-fertilization (mpf). (B) Representative Western blots of the intestinal protein of WT ± Dox and ImiR-21 ± Dox at 6 mpf/1 months post-treatment (mpt). (C) Expression patterns of Ptenb, p-Akt, Pdcd4, and p-Stat3 in 6 mpf/1 mpt WT + Dox and ImiR-21 ± Dox intestine samples after immunohistochemical staining. Scale bar: 50 μm. (D) Representative images of alcian blue-stained intestines of WT + Dox and ImiR-21 ± Dox at 6 mpf/1 mpt. Goblet cell hyperplasia (black arrow) and reduction of mucus layer (blue arrow) were observed in ImiR-21 + Dox intestine. Scale bar: 50 μm.
Expression Data
Antibodies:
Fish:
Condition:
Anatomical Term:
Stage: Adult

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Adult

Phenotype Detail
