FIGURE

Figure 4

ID
ZDB-FIG-210801-58
Publication
Gawel et al., 2021 - 6-Gingerol, a Major Constituent of Zingiber officinale Rhizoma, Exerts Anticonvulsant Activity in the Pentylenetetrazole-Induced Seizure Model in Larval Zebrafish
Other Figures
All Figure Page
Back to All Figure Page

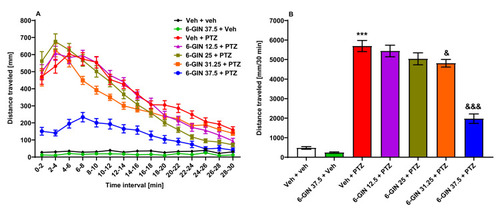

Figure 4

The influence of 6-GIN on the seizure-like behavior in the PTZ-induced zebrafish hyperlocomotion assay. After 24 h incubation in different doses of 6-GIN (12.5, 25, 31.25, or 37.5 µM), 7-day-old zebrafish larvae were exposed to PTZ (20 mM). Larval behavior was assessed 5 min after PTZ administration. Results of the assay are depicted as: (A) distance covered by larvae in 2 min long time bins, and (B) total distance covered by larvae during 30 min of the assay. Data were analyzed using one-way or two-way ANOVA with repeated measures followed by Tukey’s or Bonferroni’s post hoc test, respectively. Data are depicted as a mean ± SEM. Veh + veh (n = 48), 6-GIN 37.5 + Veh (n = 48), Veh + PTZ (n = 64), 6-GIN 12.5 + PTZ (n = 47), 6-GIN 25 + PTZ (n = 56), 6-GIN 31.25 + PTZ (n = 48), 6-GIN 37.5 + PTZ (n = 37). *** p < 0.001 vs. Veh + veh; &&& p < 0.001, & p < 0.05 vs. Veh + PTZ. 6-GIN—6-gingerol, PTZ—pentylenetetrazole, Veh—vehicle. n—refers to the total number of larvae.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
