FIGURE

Fig. 1.

ID

ZDB-FIG-210623-46

Publication

Falkenberg et al., 2021 - Ccdc103 promotes myeloid cell proliferation and migration independent of motile cilia

Other Figures

(all 11)

All Figure Page

Back to All Figure Page

Fig. 1.

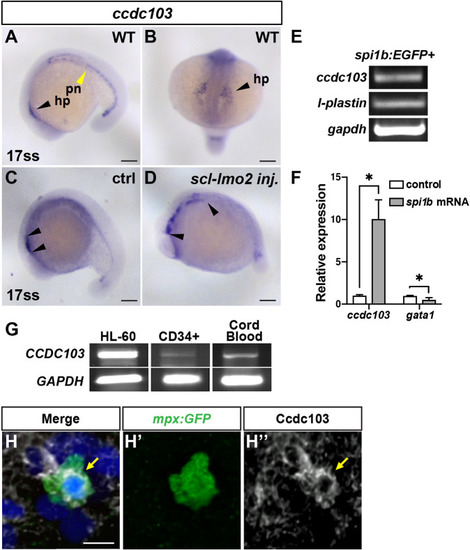

ccdc103 is expressed in myeloid cells. (A,B) ccdc103 expression in a 17-somite stage (ss) wild-type (WT) embryo. hp, hematovascular progenitors (black arrowheads); pn, pronephros (yellow arrowhead). (C,D) The anterior domain of ccdc103 expression (black arrowheads) is expanded in embryos co-injected with scl and lmo2 mRNAs. In A, C and D, images are lateral views with anterior left. In B, image is a dorsal view. (E) RT-PCR for ccdc103, l-plastin (positive control) and gapdh performed on cDNA isolated from fluorescence-activated cell sorting (FACS)-sorted spi1b:EGFP⁺ zebrafish myeloid progenitor cells. (F) RT-qPCR for ccdc103 and gata1 performed on cDNA isolated from embryos injected with spi1b mRNA. *P<0.05 (two-tailed unpaired Student's t-test). (G) RT-PCR for human CCDC103 was performed with cDNA isolated from HL-60 cells, CD34⁺/CD38^– hematopoietic stem cells (HSCs) and cord blood. (H-H″) Immunohistochemistry (IHC) for Ccdc103 (arrows), GFP and DAPI in an mpx:GFP⁺ zebrafish neutrophil at 24 hpf. Scale bars: 100 μm (A-D), 10 μm (H).

Expression Data

Genes:	dnaaf19 GFP
Antibody:	Ab2-ccdc103
Fish:	WT uwm1Tg
Anatomical Terms:	anterior lateral plate mesoderm myeloid lineage restricted progenitor cell neutrophil neutrophil perinuclear region of cytoplasm pronephros
Stage Range:	14-19 somites to Prim-5
