Figure 1

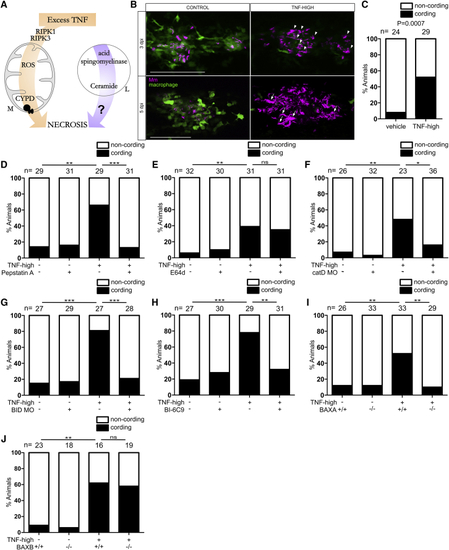

Ceramide Causes Necrosis through Cathepsin D, BID, and BAX

(A) Cartoon of TNF-mediated necrosis pathway components. CYPD, cyclophilin D; M, mitochondrion; L, lysosome.

(B) Confocal images of granulomas in 3 or 5 dpi TNF-high or control larvae with yellow fluorescent macrophages infected with red fluorescent Mm. Arrowheads, extracellular bacteria; arrows, extracellular, cording bacteria. Scale bar, 100 μm.

(D) Cording in 5 dpi TNF-high or control larvae treated with pepstatin A.

(E) Cording in 5 dpi TNF-high or control larvae treated with E64d.

(F) Cording in 5 dpi TNF-high and control larvae that are wild-type (WT) or cathepsin D morphant.

(G) Cording in 5 dpi TNF-high and control larvae that are WT or BID morphant.

(H) Cording in 5dpi TNF-high and control larvae treated with BI-6C9.

(I) Cording in 5 dpi TNF-high or control larvae that are WT or BAXA mutant.

(J) Cording in 5 dpi TNF-high and control larvae that are WT or BAXB mutant.

(C–J) ^∗p < 0.05; ^∗∗p < 0.01; ^∗∗∗p < 0.001 (Fisher’s exact test). Each panel representative of 3–6 independent experiments.

See also Figure S1.
