Figure 1

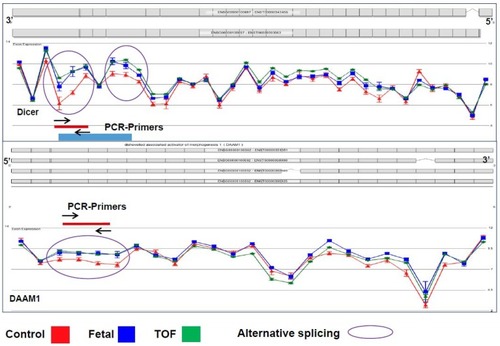

Representative examples of alternative splicing of two genes (DICER1 and DAAM1). Circled regions represent exonic regions where multiple probes had a significant change in probe intensity level between the normally developing and control subjects and the subjects with TOF. Note that there is not a significant difference in the probe intensities in other regions of the genes. In addition, note that the blue line represents probe intensities of samples from fetal tissue which differed significantly from the control tissue in the circled regions but did not differ from the samples from subjects with TOF. Standard error bars are shown for each probe. N: TOF = 16, Control = 8, Fetal = 3.
