Fig. 1

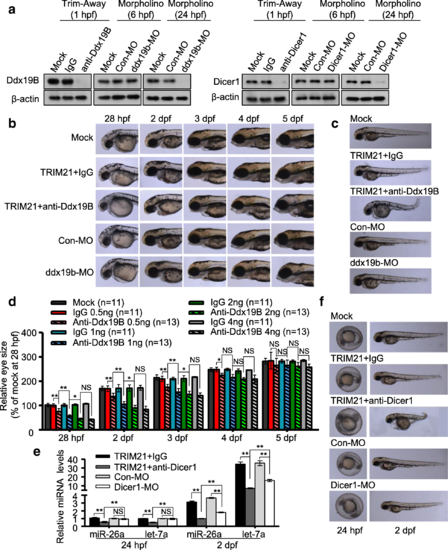

Comparing the effects of Ddx19B or Dicer1 knockdown by Trim-Away or morpholinos in zebrafish embryos. Zebrafish embryos were co-injected with TRIM21 and antibodies (anti-Ddx19B antibody, anti-Dicer1 antibody, or control IgG) or injected with morpholinos (ddx19b-MO, Dicer1-MO, or Con-MO) at 0 hpf. a The level of Ddx19B or Dicer1 was determined by western blotting at the indicated time points. b Lateral view of eye size at the indicated time points. c Lateral view of the body axis at 2 dpf. d Eye diameter in embryos injected with different doses of TRIM21/anti-Ddx19B antibody or TRIM21/IgG was measured at the indicated time points; zebrafish numbers are indicated in brackets. e The level of miR-26a and let-7a was determined at the indicated time points. f Lateral view of embryos at the indicated time points. The data in d and eare shown as the mean ± SD of three independent experiments, *P ≤ 0.05, **P ≤ 0.01, NS indicates P > 0.05

Expression Data
Antibodies:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage Range: Shield to Prim-5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Prim-5 to Day 5

Phenotype Detail
