Fig. 3

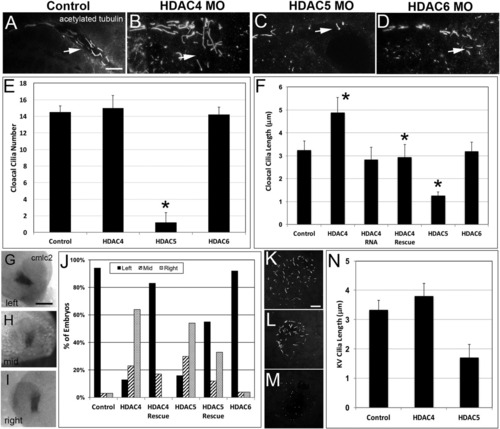

HDACs have opposing effects on primary cilia. A–D: Lateral views of 72‐hpf embryos immunostained for acetylated tubulin (green) reveal cilia at the junction of a pronephric duct with the cloaca. Scale bar = 5 μm. Cloacal cilia number and length were assessed at 72 hpf (E,F). n = 15–30 embryos. *P < 0.005 in comparison to controls. Cardiac asymmetry was analyzed by cmlc2 expression at 24 hpf (G–I) and plotted as a percentage of embryos (J). n = 20–38 embryos. Primary cilia length in the KV at the 12‐somite stage (K–M) is averaged (N). n = 40–60 cilia. Scale bar = 5 μm. *P < 0.005. |
Expression Data
| Antibody: | |
|---|---|
| Fish: | |
| Knockdown Reagents: | |
| Anatomical Term: | |
| Stage: | Protruding-mouth |
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Knockdown Reagents: | |
| Observed In: | |
| Stage Range: | 5-9 somites to Protruding-mouth |
Phenotype Detail
