Fig. 4

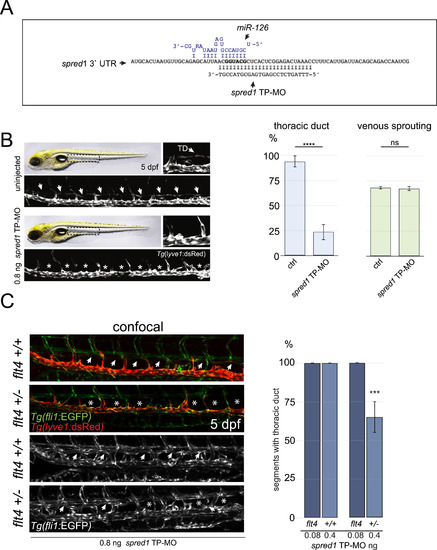

Blocking miR-126 dependent spred1 suppression phenocopies miR-126 loss. (A) miR-126 binding site in the spred1 3′UTR. “Seed” sequence in bold, miR-126 in blue. The target protector morpholino (TP-MO) was designed to mask the “seed” sequence with its 3′ end to minimise binding to other miR-126 targets. (B) Injection of spred1 TP-MO phenocopies miR-126 loss. The formed TD can be visualized in uninjected control Tg(lyve1:DsRed2) larvae at 5 dpf. Injection of 800 pg of spred1 TP-MO reduced TD formation without affecting vISV number. At least 24 injected embryos analysed per experiment; 3 independent experiments. (C) flt4+/- larvae are more sensitive to spred1 TP-MO injections. A significant reduction of TD formation can be observed in flt4+/- but not in wild-type siblings injected with 400 pg of spred1 TP-MO. Injection of 80 pg of TP-MO did not affect TD development in either genotype. Minimum 8 embryos analysed per genotype per treatment group; 2 independent experiments. Error bars represent SEM. Unpaired Student's t-test was performed to test for statistical significance.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage: Day 5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 437(2), Kontarakis, Z., Rossi, A., Ramas, S., Dellinger, M.T., Stainier, D.Y.R., Mir-126 is a conserved modulator of lymphatic development, 120-130, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
