Fig. 3

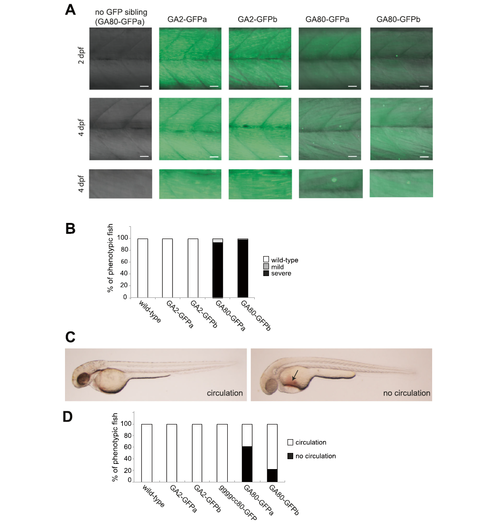

Poly-GA protein elicits a toxic phenotype. a In vivo image of GA-GFP polypeptides at 2 and 4 dpf. Genotypes as indicated. No GFP sibling (GA80-GFP) refers to a sibling from a cross between a Gal4 driver and a UAS GA80-GFP responder fish that is GFP negative, and hence is either negative for the driver or the responder construct, or both constructs. GFP fluorescent images shown are merged with DIC pictures. Lowest panel is a magnification of the middle panel at 4 dpf. Lateral views of the trunk musculature. Scale bar 20 μm. b A strong pericardial edema phenotype was observed in GA80-GFPa/b zebrafish at 4 dpf. The average percentages of phenotypic fish of the three different classes are indicated in the bargraph. c GA80-GFPa/b zebrafish had mostly no circulation at 2 dpf. Red blood cells accumulate due to circulation defects (arrow). d The average percentages of fish with or without circulation are indicated in the bargraph (at least three independent clutches were analyzed with n ≥14)

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mde8Tg; nk73aGt mde9Tg; nk73aGt mde10Tg; nk73aGt mde11Tg; nk73aGt mde12Tg; nk73aGt
Observed In:	blood circulation pericardium
Stage Range:	Long-pec to Day 4

Phenotype Detail
