Fig. 3

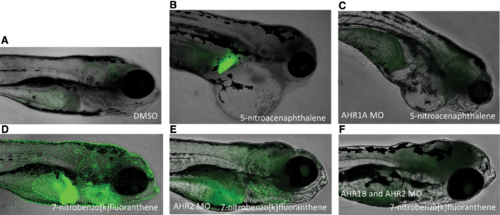

Selected representative images of cyp1a/GPF expression in Tg(cyp1a:nls-egfp) transgenic zebrafish following chemical exposures and morpholino oligonucleotide injections. Examples of cyp1a/GFP expression patterns in the DMSO-exposed animals (A), liver (B), absence liver expression in AHR1A morphants (C), skin, neuromasts and liver (D), near-complete elimination of skin, neuromast, and vascular expression in AHR2 morphants (E), and complete skin, neuromast, and vasculature expression elimination (F) following co-injection of the AHR2 and AHR1B morpholinos, following exposure to indicated NPAHs. |
