Fig. 7

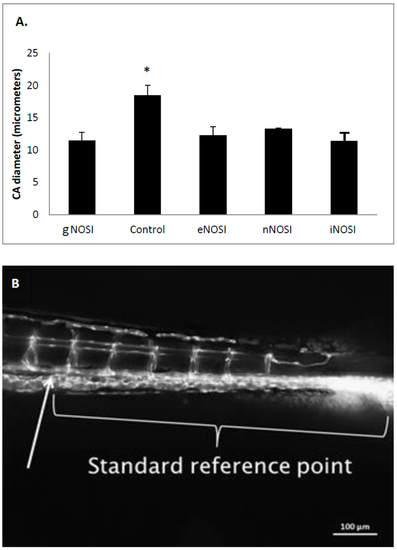

The effects of various treatments in TG(fli1:EGFP) y1/+y1 (AB) transgenic fish on average tail caudal artery (CA) diameter as measured from confocal z-stack photomicrographs after 4 days of treatment beginning at 48 h post fertilization (hpf). (A) CA diameter is significantly decreased in gNOSI treated fish when compared to that of controls (* p < 0.001). In addition, all three NOSI isoforms also cause a significant decrease in CA diameter (p < 0.05; Bar = ± SD); (B) In order to ensure that measurements of all vessels including the CA were collected in the same location in every confocal- imaged photograph, a standard reference point (arrow) of a distance (875 µm) from the tail region was used. Bar equals 100 µm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	y1Tg (AB)
Conditions:	chemical treatment by environment: dibenziodolium chloride chemical treatment by environment: N(gamma)-nitro-L-arginine methyl ester hydrochloride chemical treatment by environment: EC 1.14.13.39 (nitric oxide synthase) inhibitor
Observed In:	caudal artery
Stage:	Day 6

Phenotype Detail
